Published: Jun 5, 2025 by Isaac Johnson

Last time I showed how to use OpenAI with n8n workflow agent setups to query a google shared calendar. Today, I wanted to dig into Google Vertex AI integration to see how it compares.

We’ll build a simple chat bot but then move on to using some AI tools to help build out a new flow. I’ll compare a few different systems (Copilot, Gemini, Claude, Anthropic Opus) and show how I ultimately built out a fully functional Vertex AI based Chatbot that can search my Github issues and then created new ones based on user feedback via an Agentic AI.

Let’s get started…

Getting started

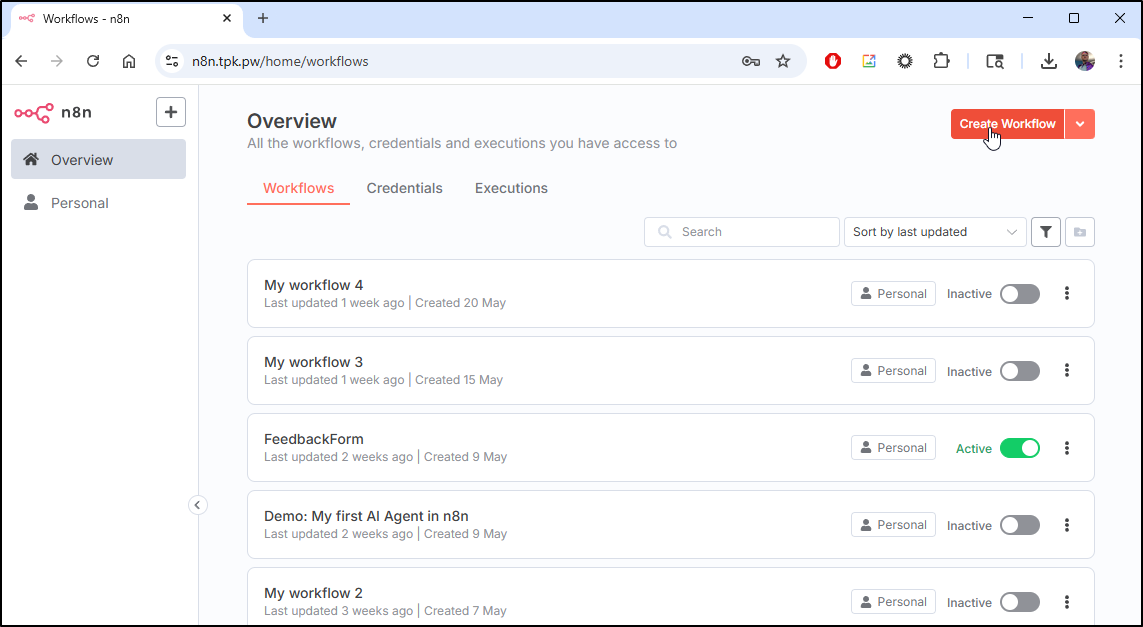

Let’s start by adding a new workflow

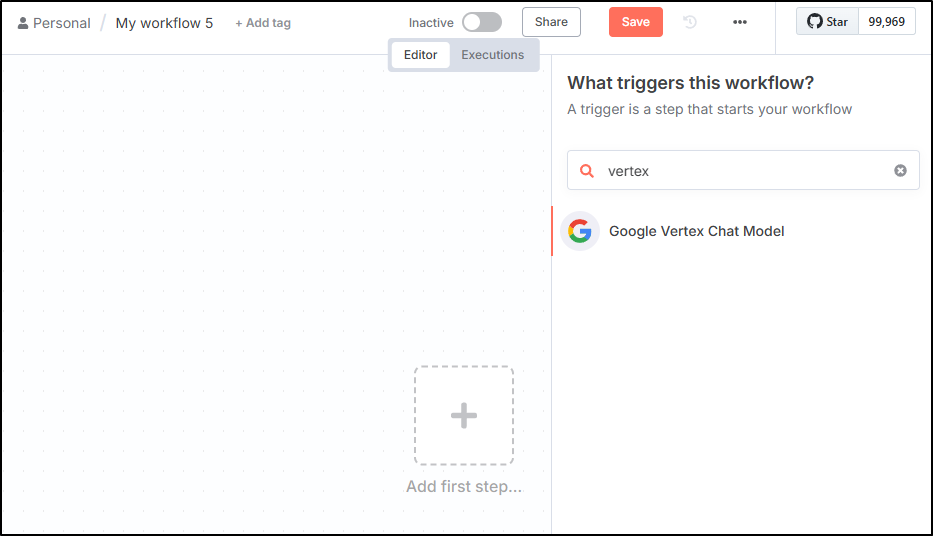

I’ll search for “vertex”. We could add just a Chat trigger and build out an agent that way

But using the “Vertex chat model” set’s up a lot of the steps for us

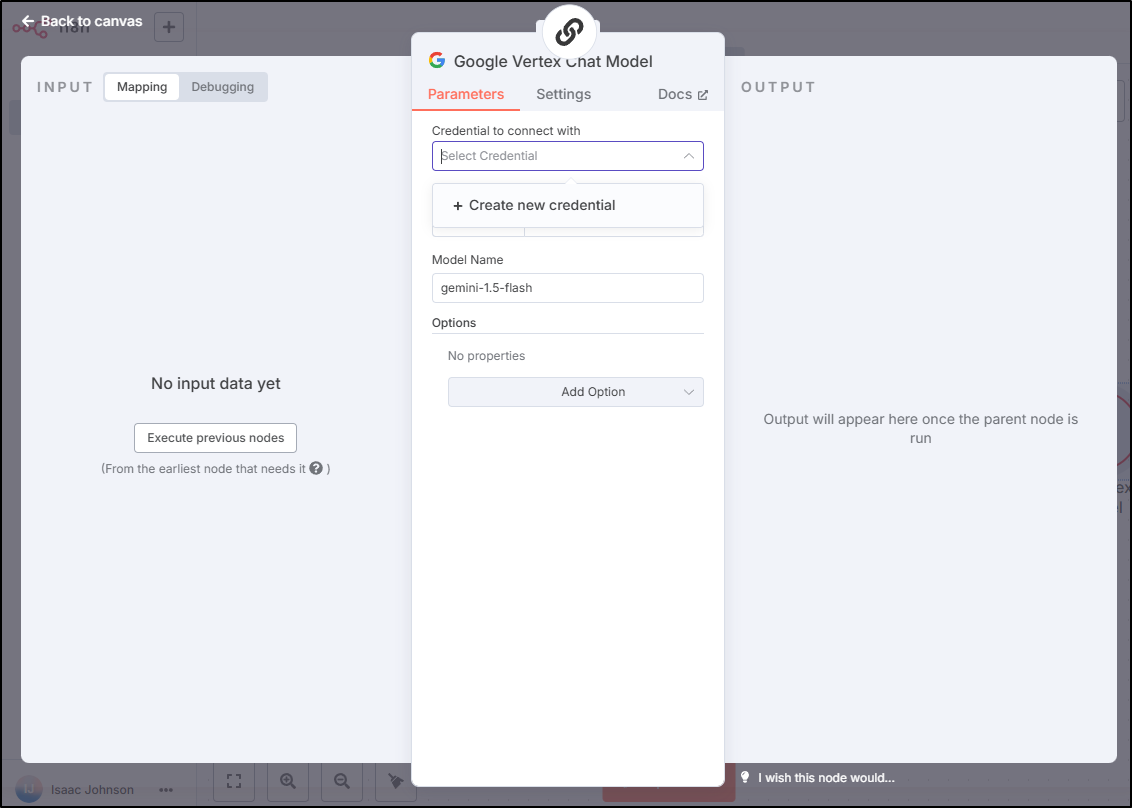

This brings up a settings page with a drop-down to pick our credential

The next page will need details from a Service Account.

Creating a Service Account

Creating a Service Account and downloading the JSON keys is a pretty easy task. Here I’ll create a new SA, grant some API access and download some fresh JSON keys

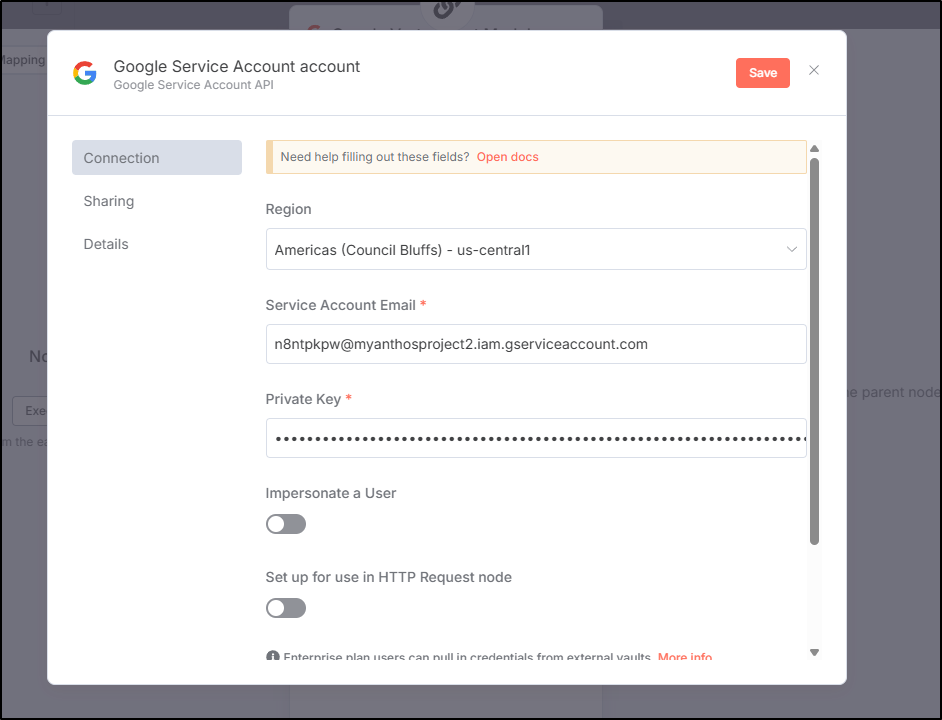

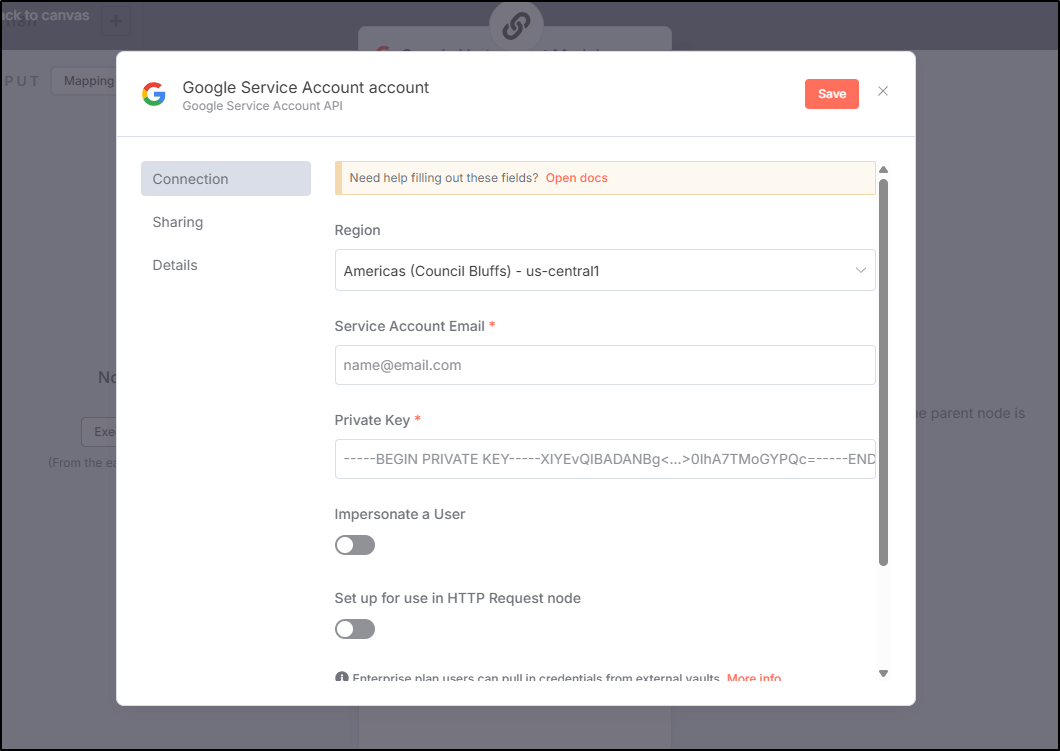

I can now add those to the n8n dialogue box

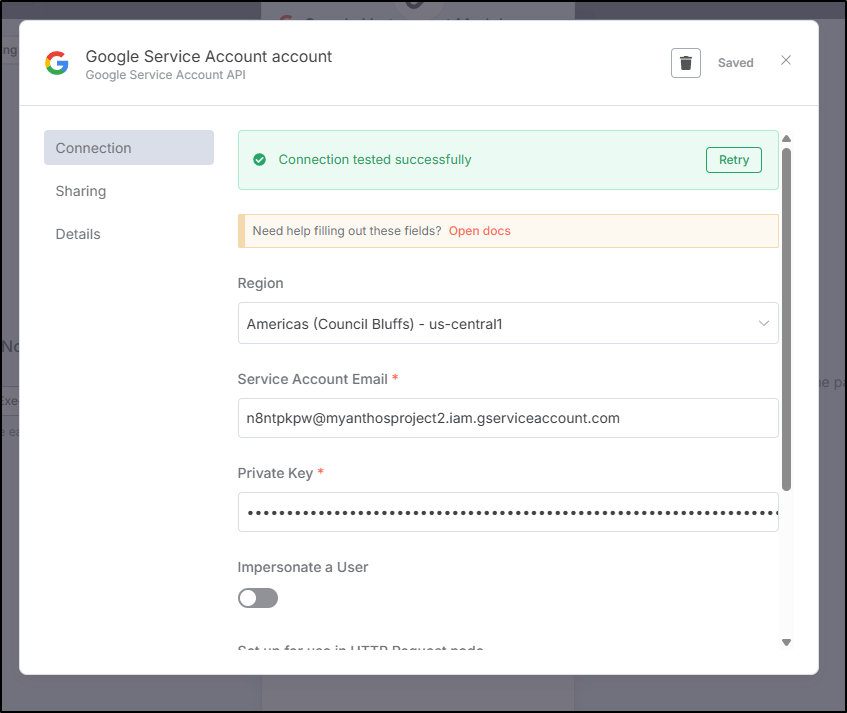

Saving will show a green box if it works

n8n agent setup

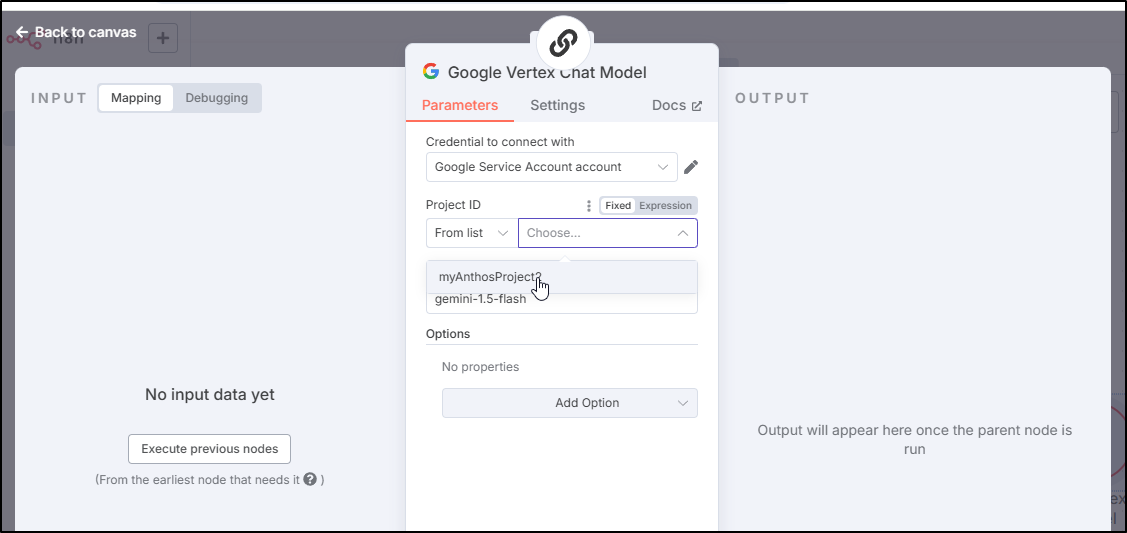

We continue with the flow in n8n by picking our project. In my case, it is ‘myanthosproject2’

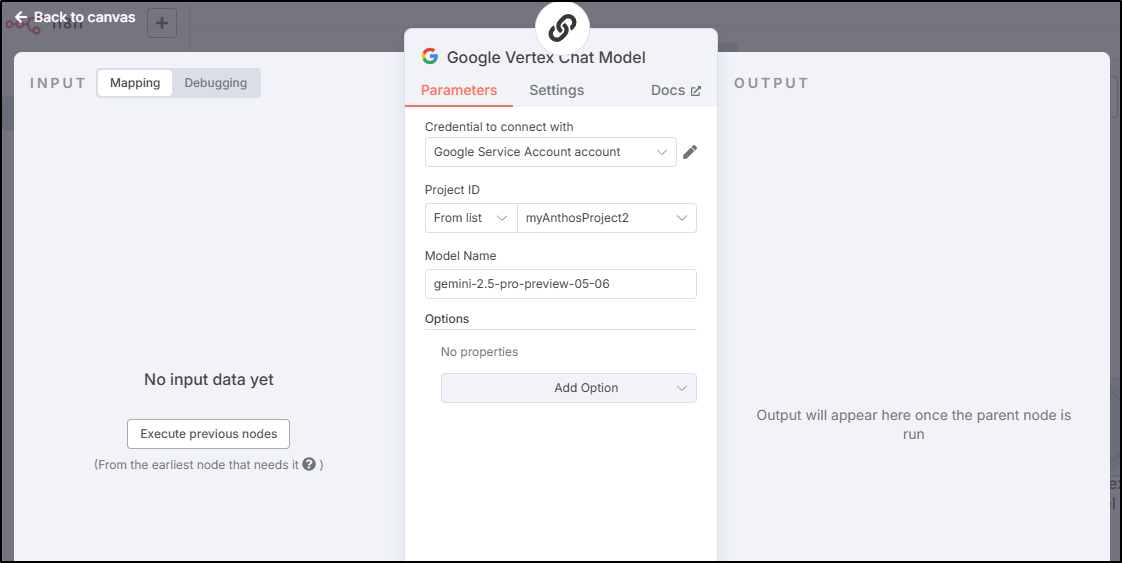

Lastly, I’ll pick a model. Here I’ll use the new gemini-2.5-pro-preview-05-06 model

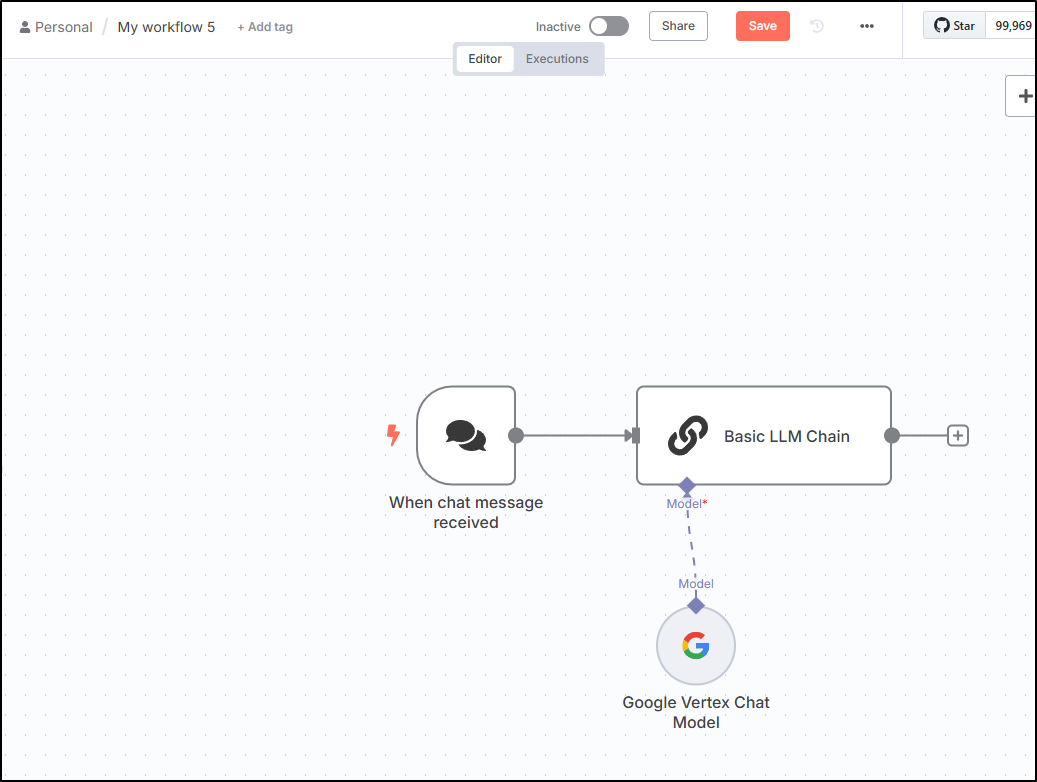

At this point I have a basic LLM chain flow with Vertex AI

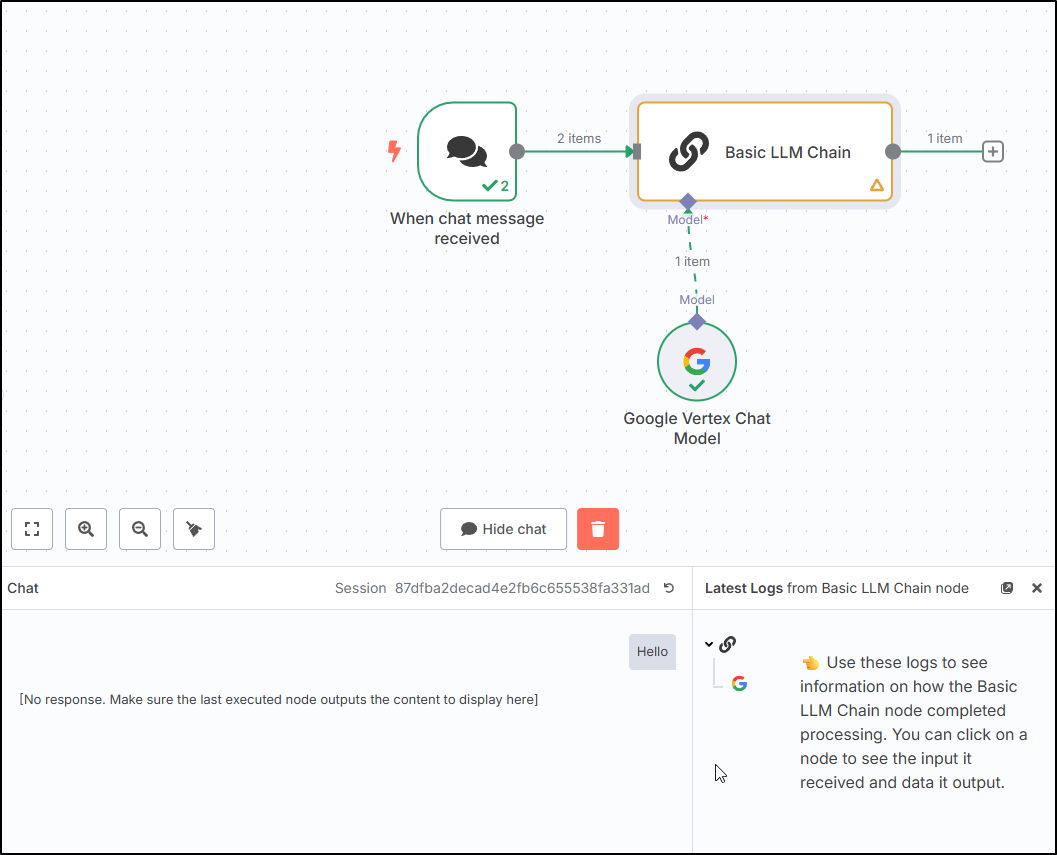

I can test it with a “Hello” prompt

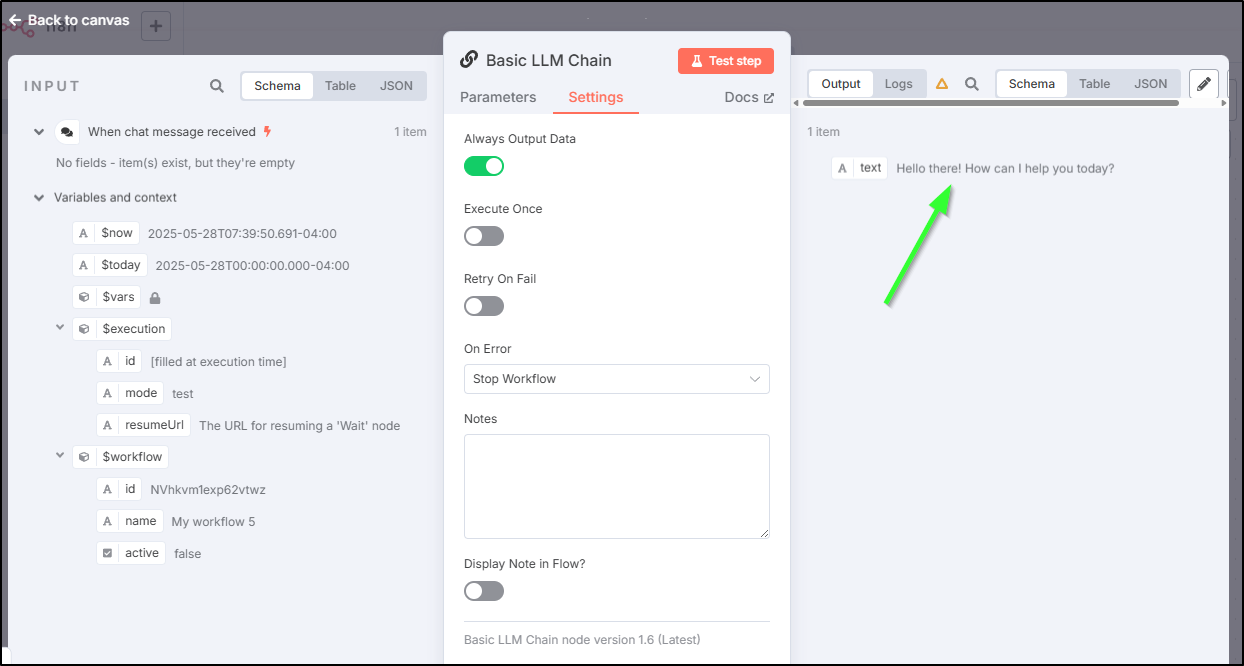

and see the output in the Agent Details when invoked

n8n with Chat trigger

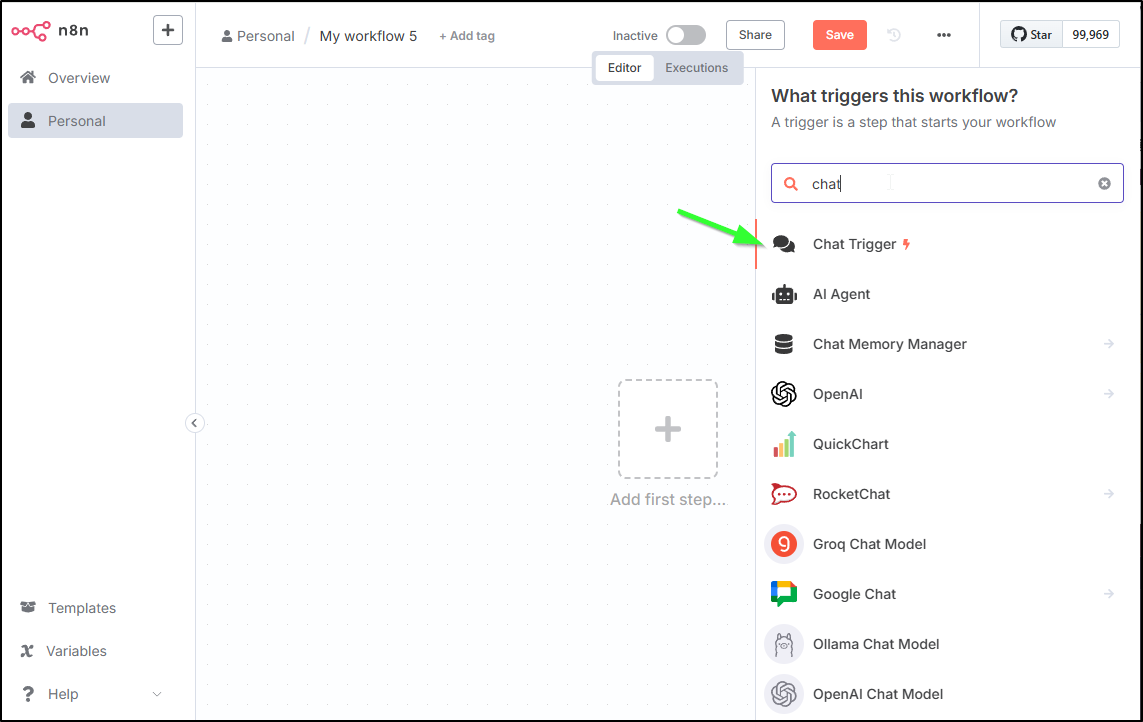

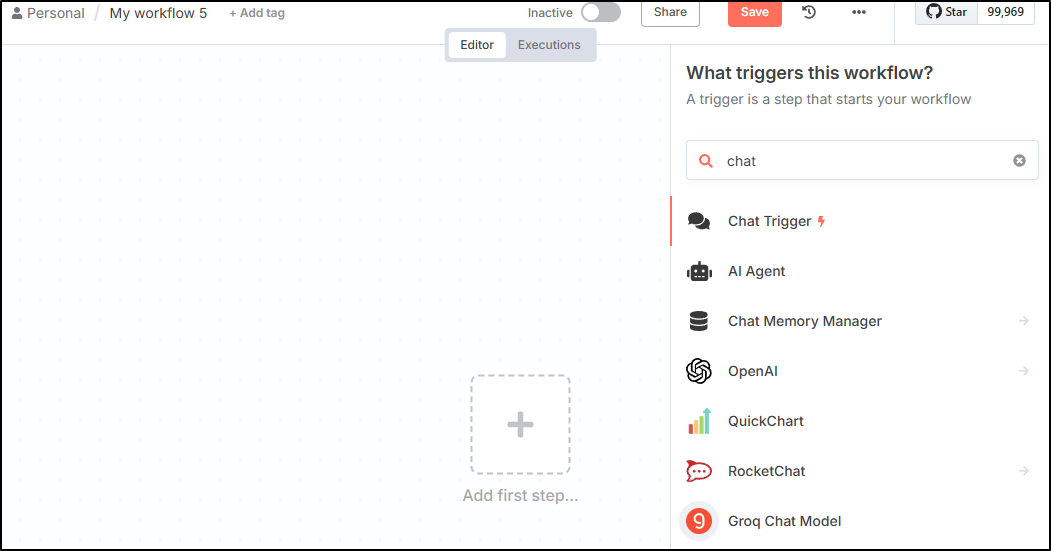

Let’s delete that all and start fresh. This time, we’ll just add a Chat trigger

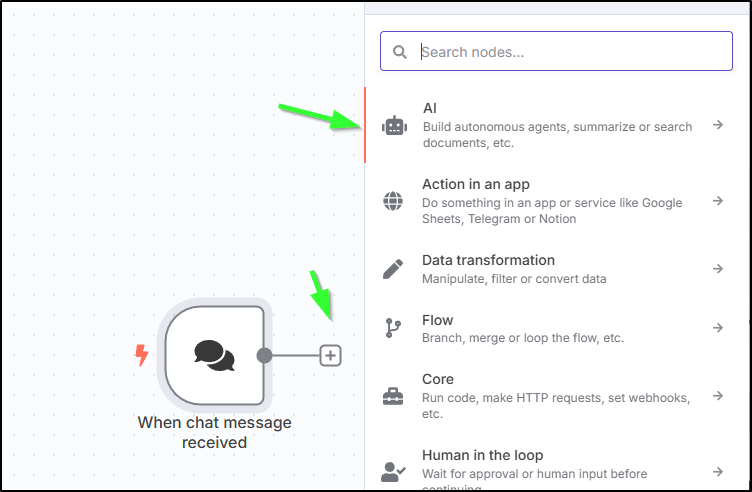

I click “+” and the “AI” block

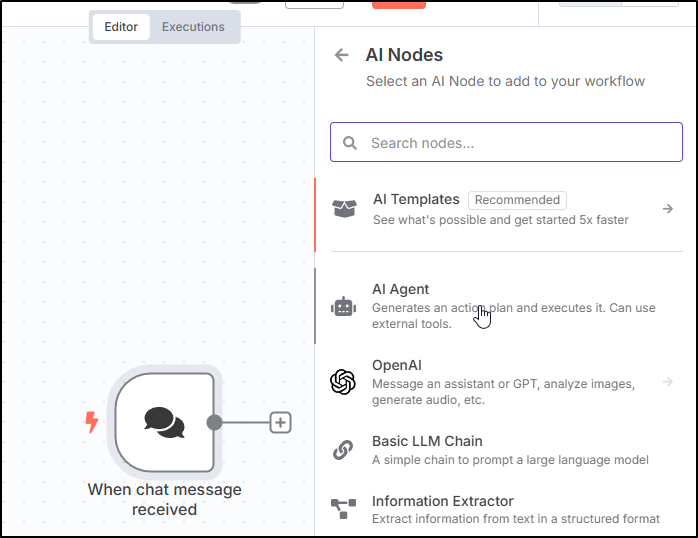

This time I pick an AI Agent

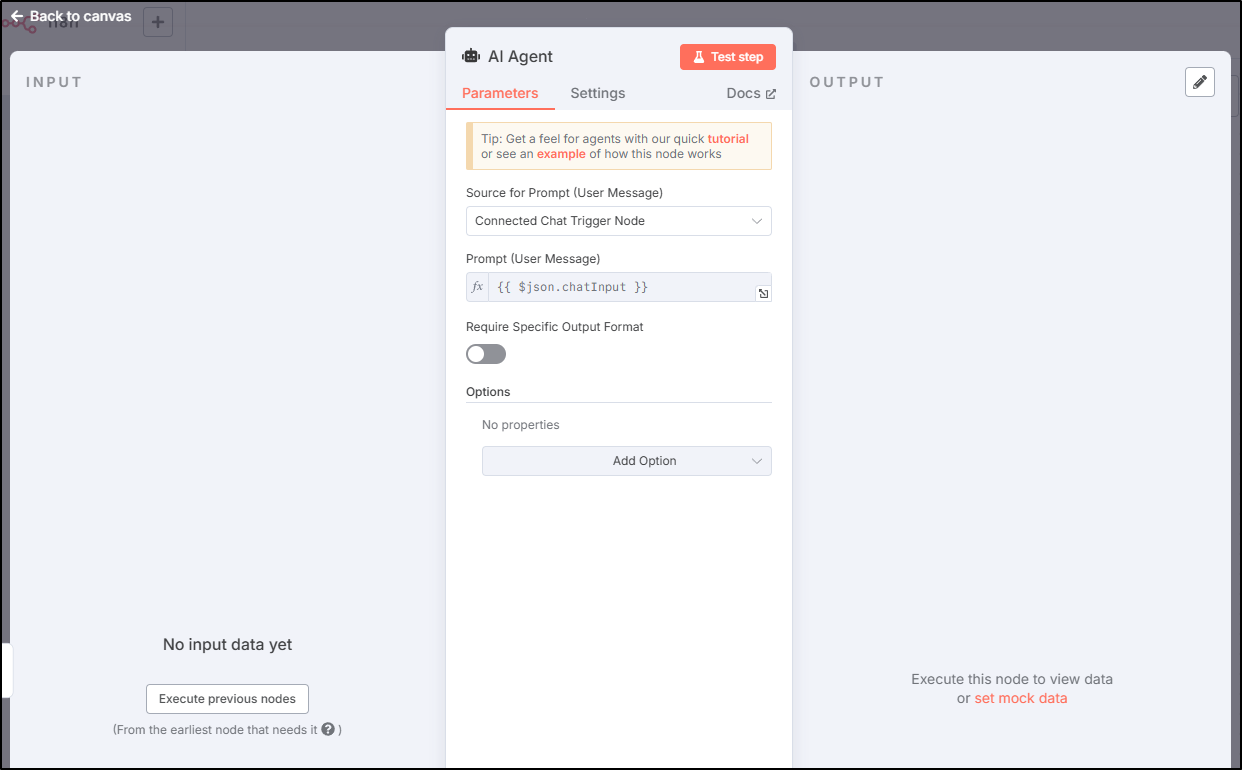

The defaults are fine

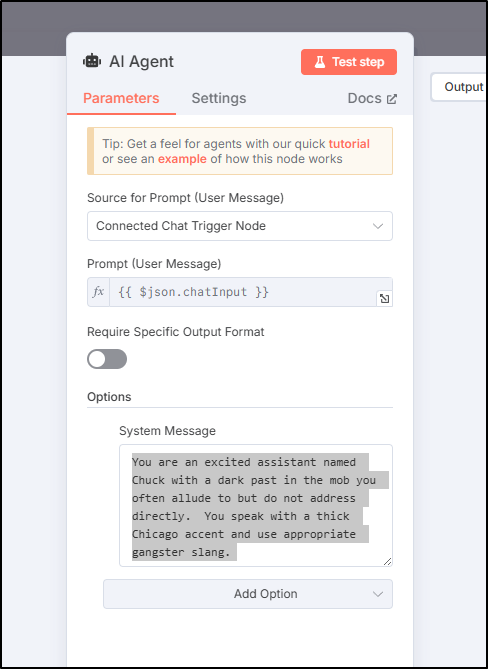

But let’s have a bit of fun and expand the options to give a system message. The default is “You are a helpful assistant”.

Let’s change that to

You are an excited assistant named Chuck with a dark past in the mob you often allude to but do not address directly.  You speak with a thick Chicago accent and use appropriate gangster slang.

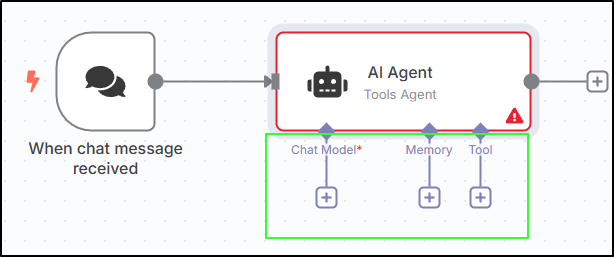

Next, I need to set a Chat Model, Memory and Tool

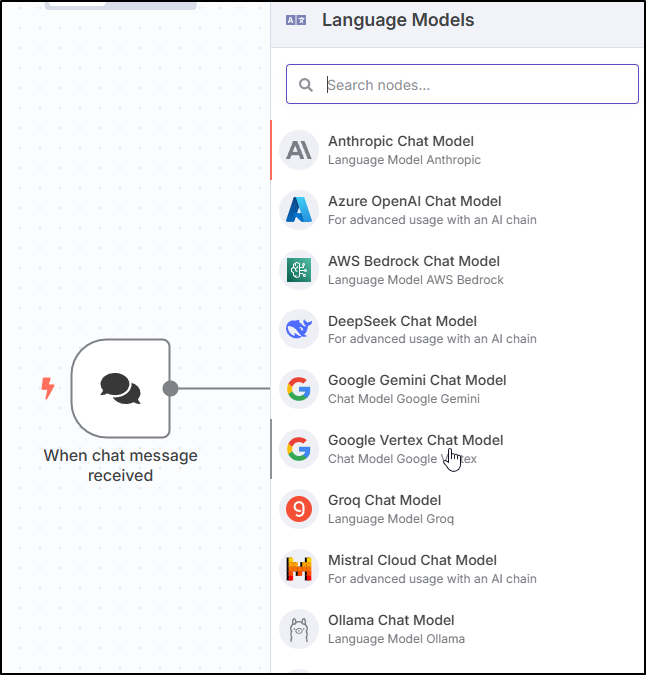

For the chat model, I’ll pick Vertex

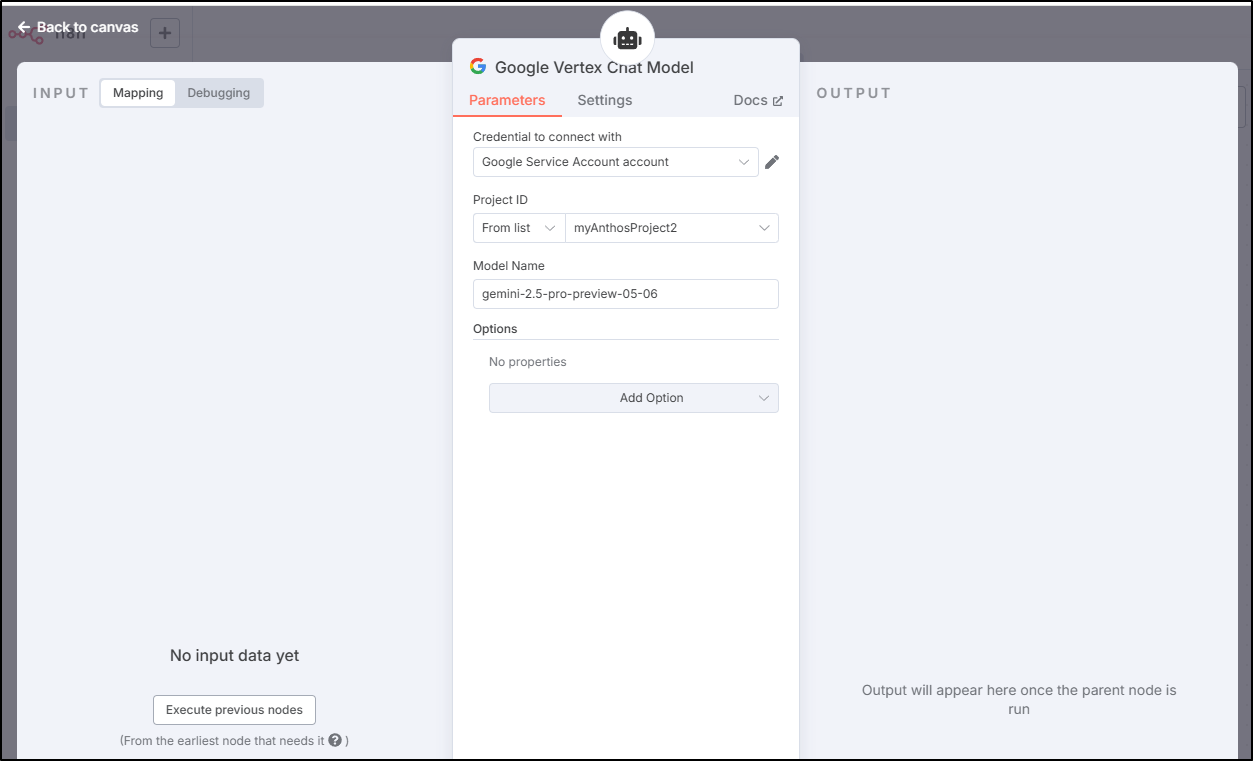

And configure the same as before with the gemini-2.5-pro-preview-05-06 model (or whatever is latest at the time you read this post)

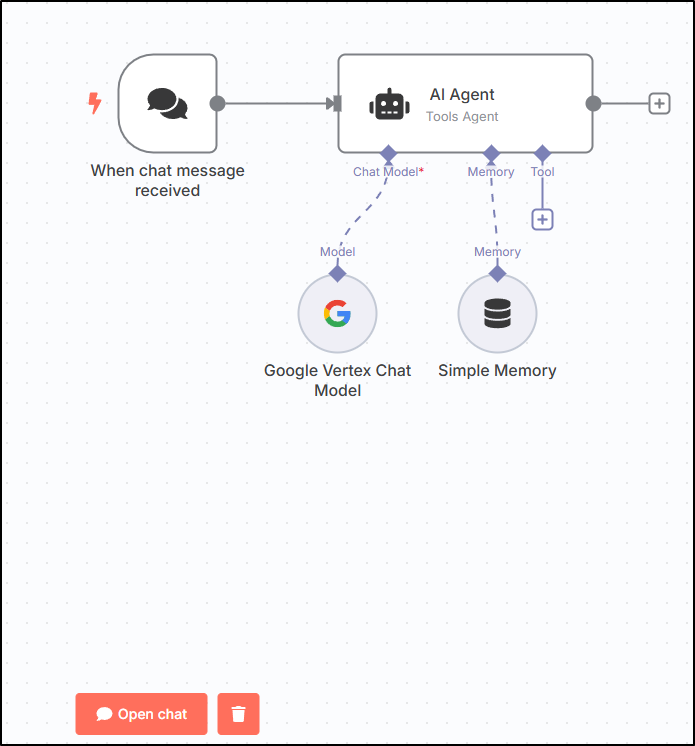

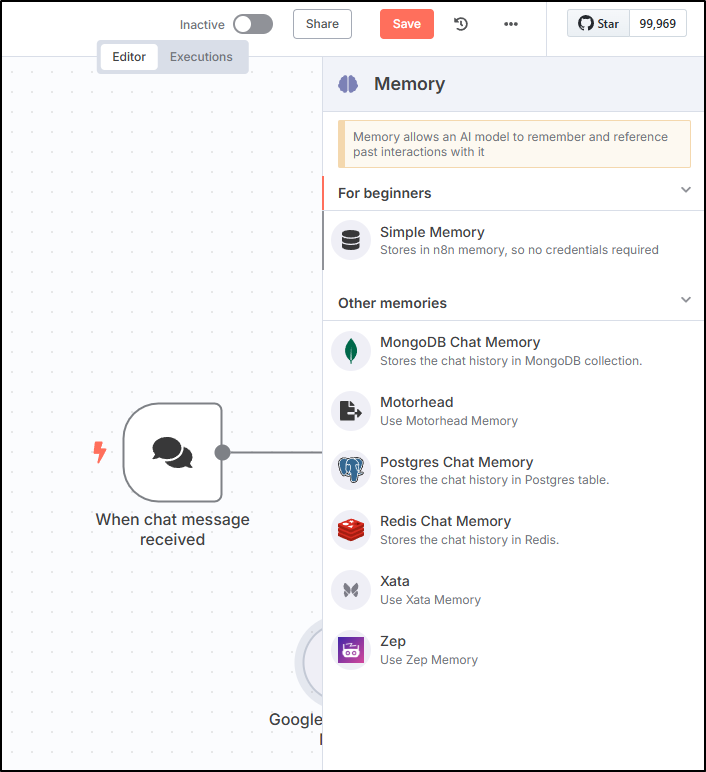

Next, I’ll click “+” on memory and just use the built-in “Simple Memory”

Test

Let’s test our flow by clicking “Open Chat”

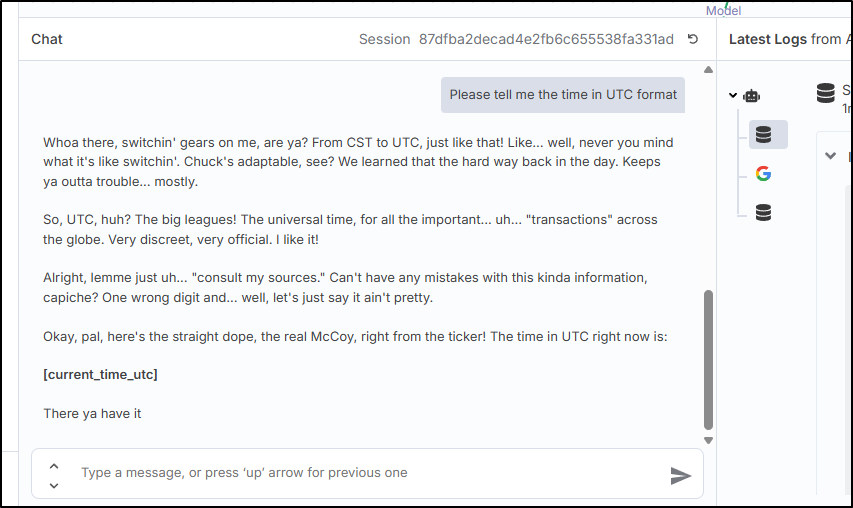

Not all that useful without data, but kind of fun to engage with:

I asked the question a few times and in different ways but never got back the exact time, just a placeholder

AI to make AI

I came across this YT video about building AI agents with AI agents by Nolan Harper.

There was a lot there and he used a variety of AI agents chained together to get the job done. It made me wonder if we could just get the job done with one or two prompts instead.

I first thought of making a quick straightforward flow of form to email and discord as an example

I would like an n8n workflow JSON that prompts a user for feedback, then emails that to my email (user@example.com) as well as posts to a discord channel and adds a new Github Issue in a repo. You may wish to consult https://docs.n8n.io/ for examples.

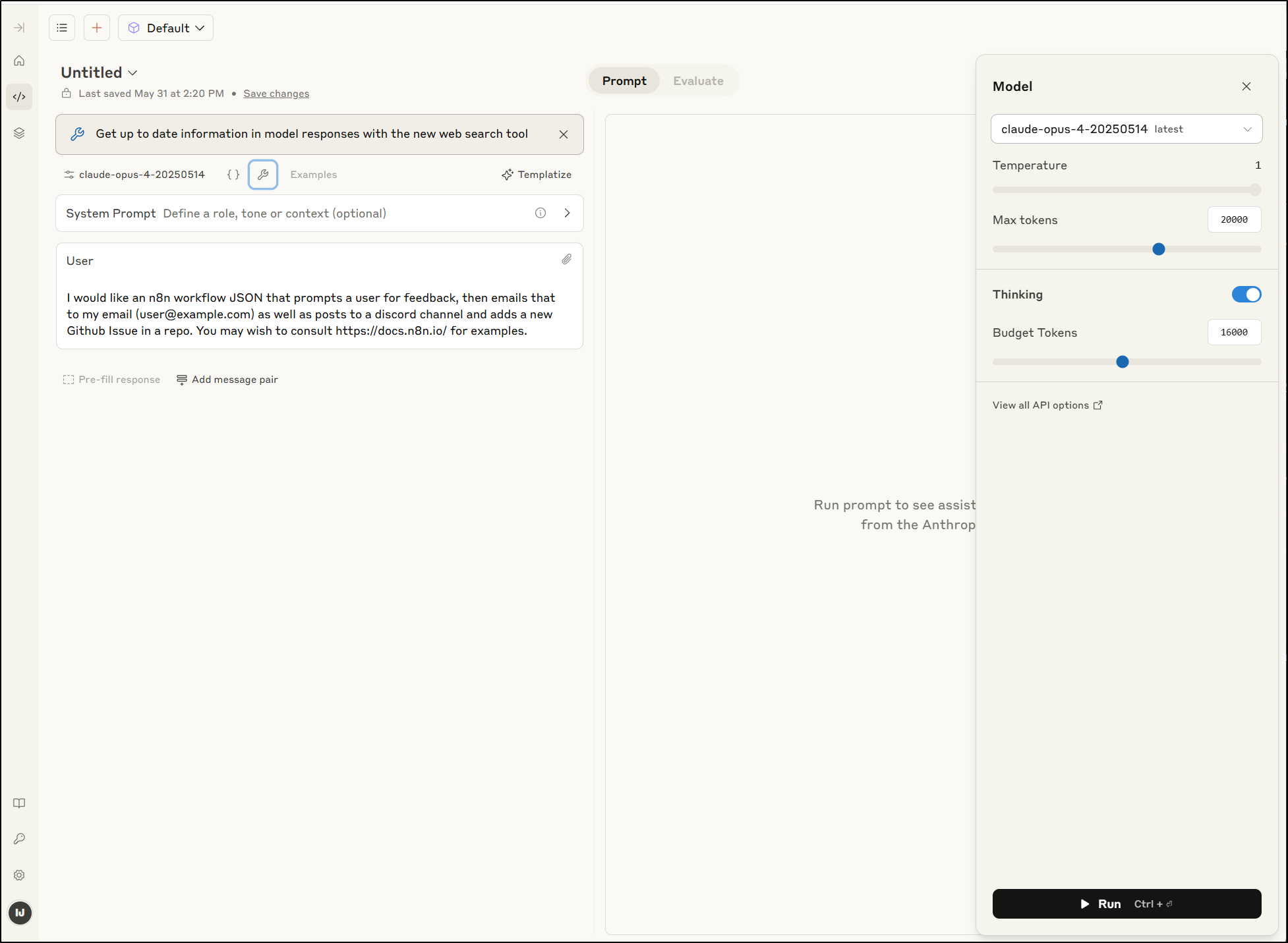

I also handed the same prompt to Anthropic’s Claude Opus 4

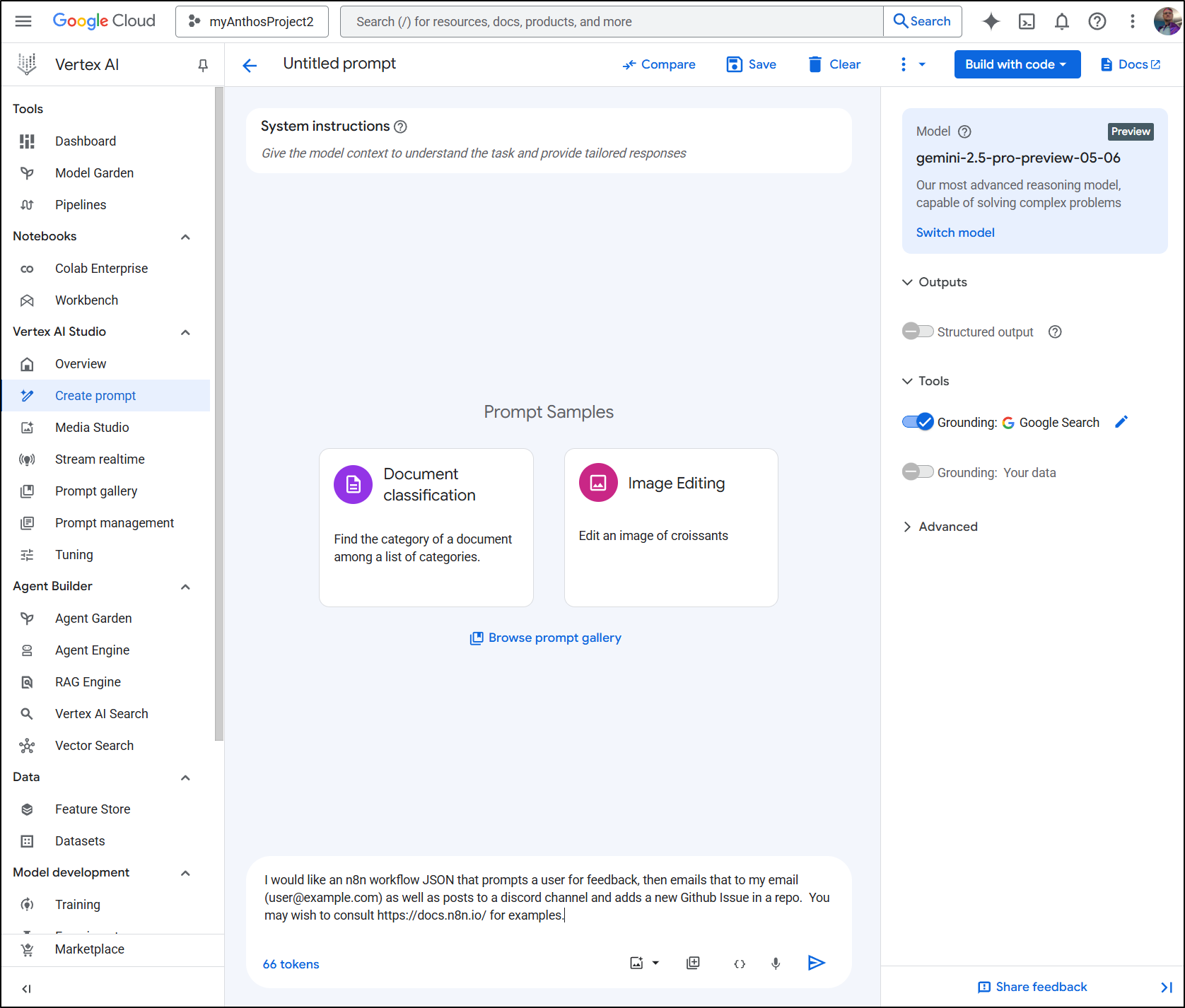

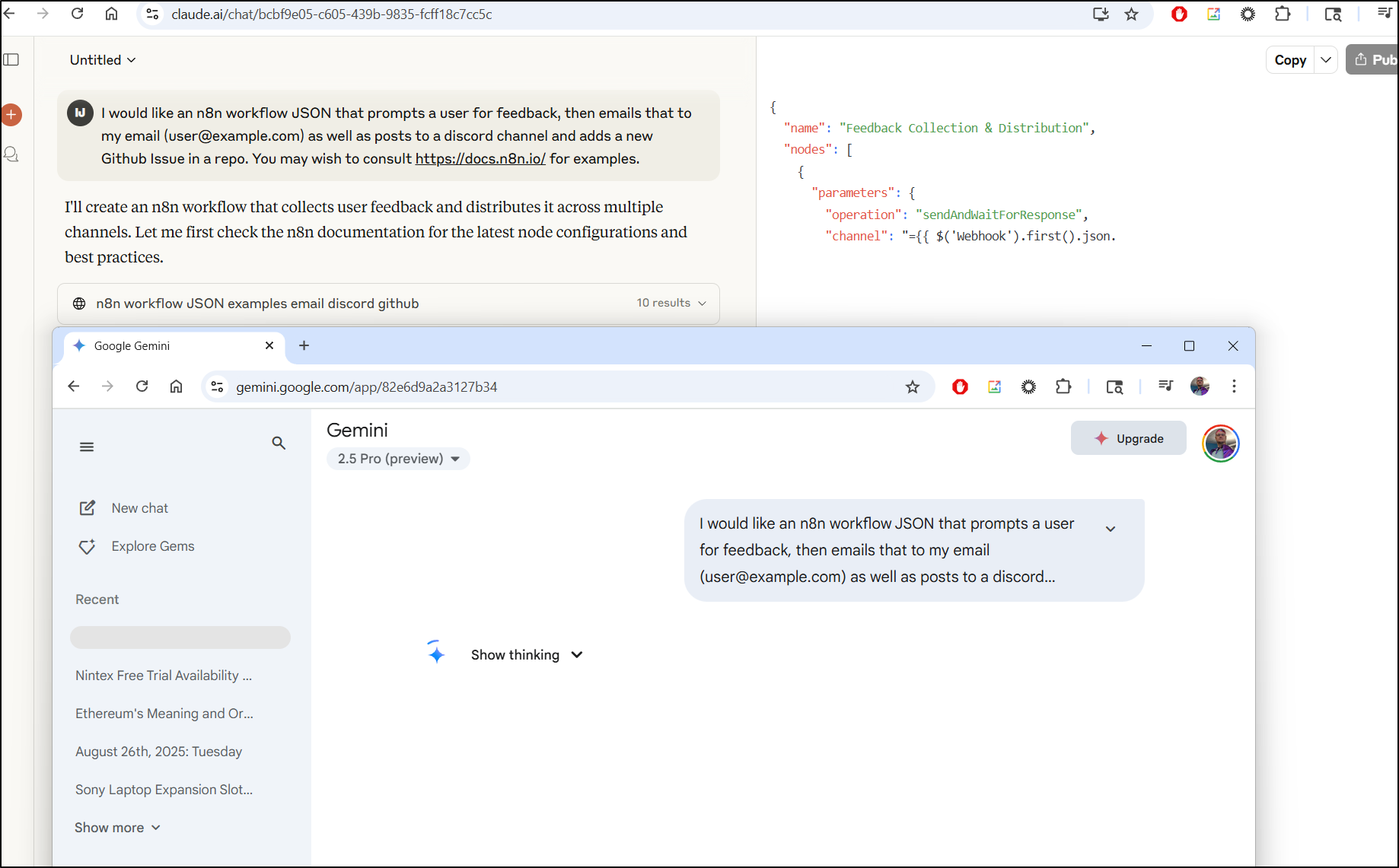

Lastly, I fed the same prompt to Gemini 2.5 Pro Preview and Claude Sonnet 4 - both in free tier - to see what I can get for free.

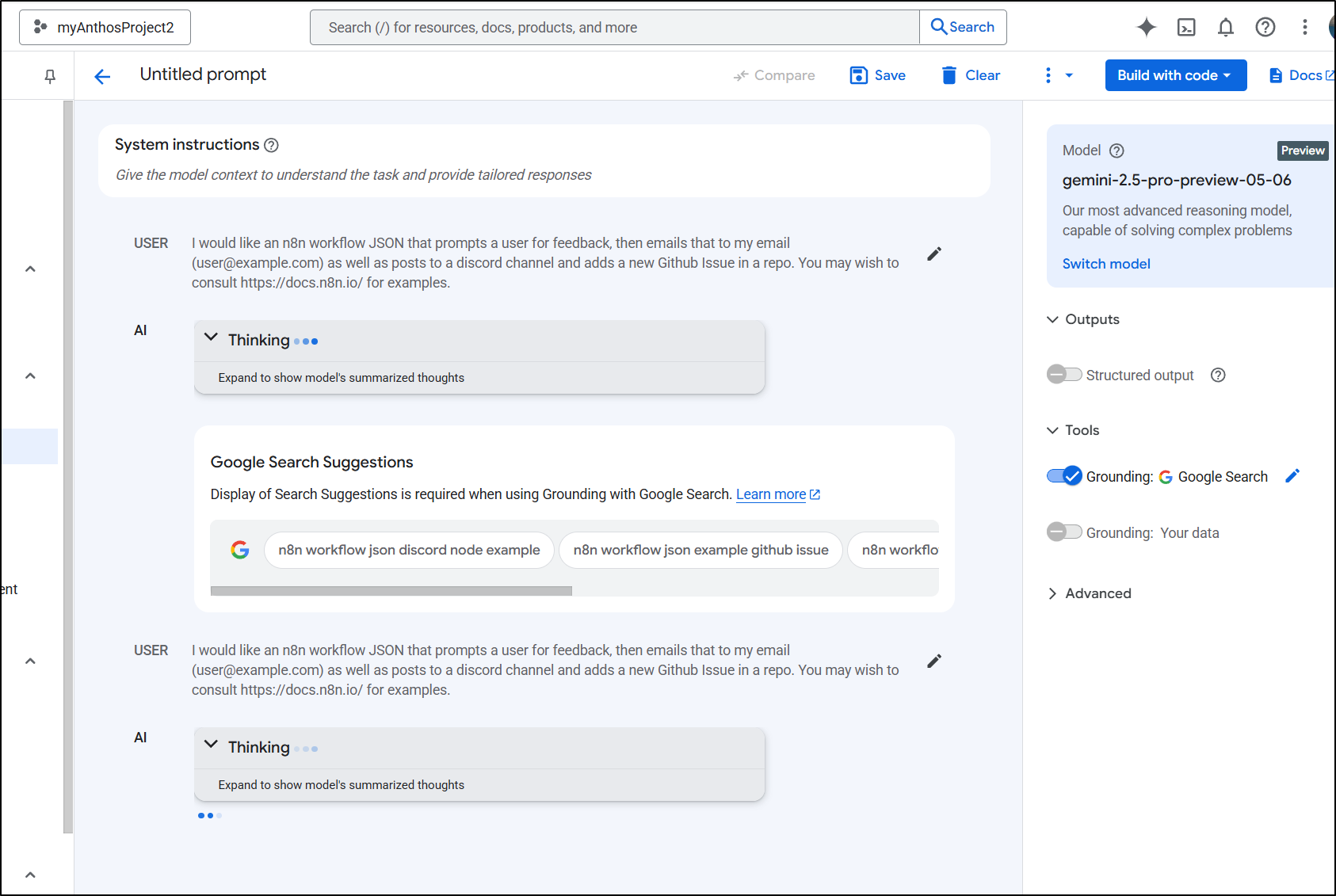

Vertex timed out so i nudged it again

Let’s see the results.

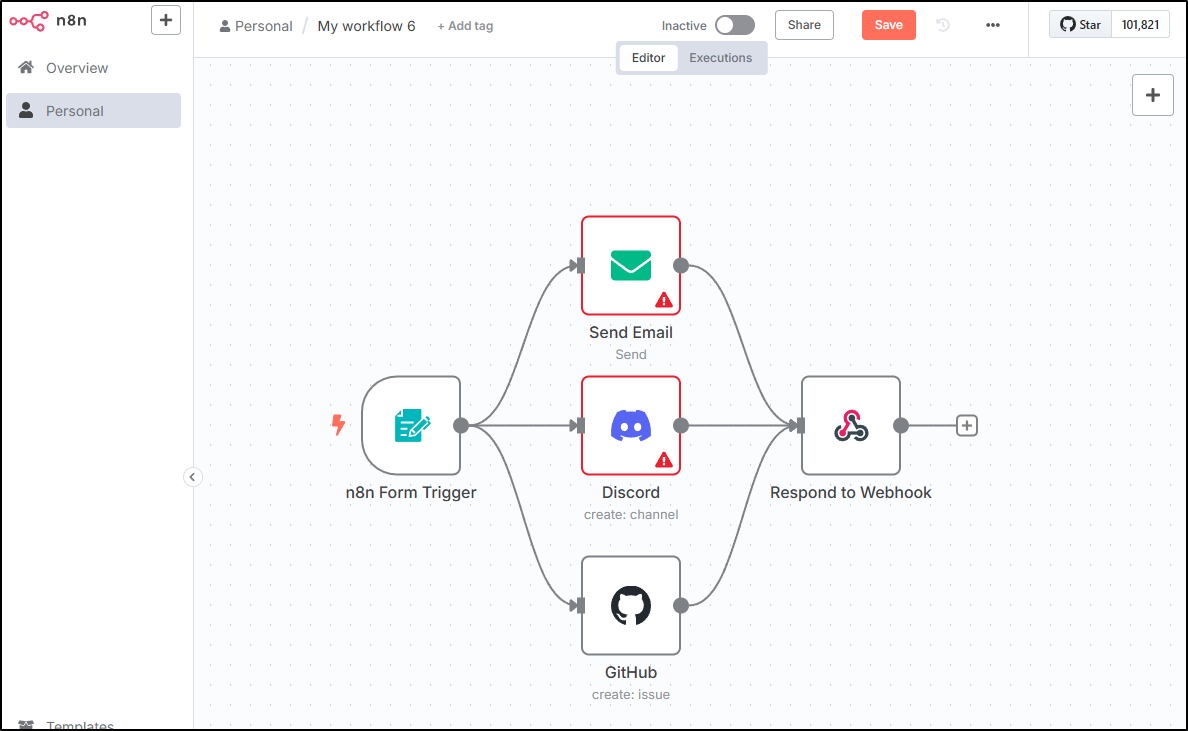

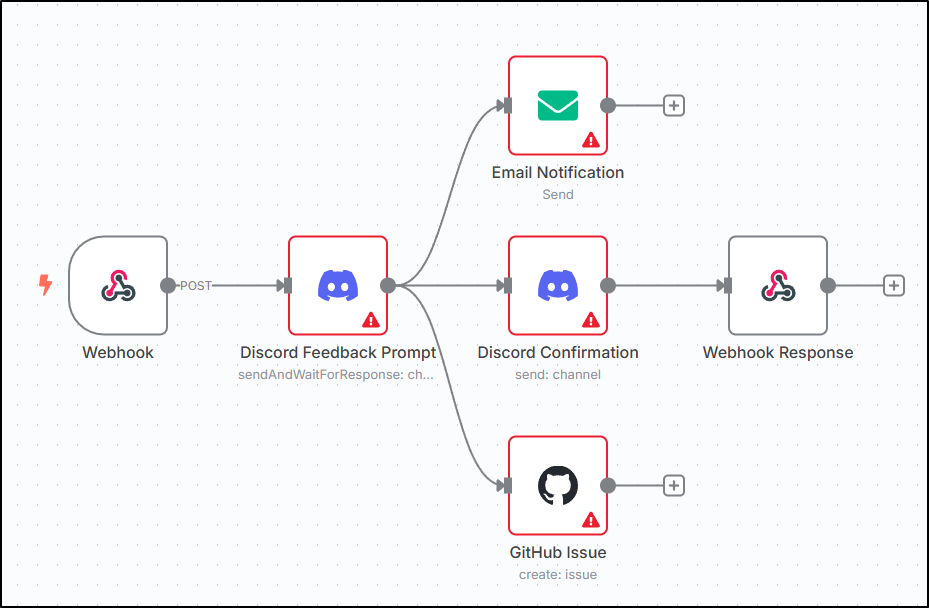

Here is the imported Anthropic Claude Opus 4

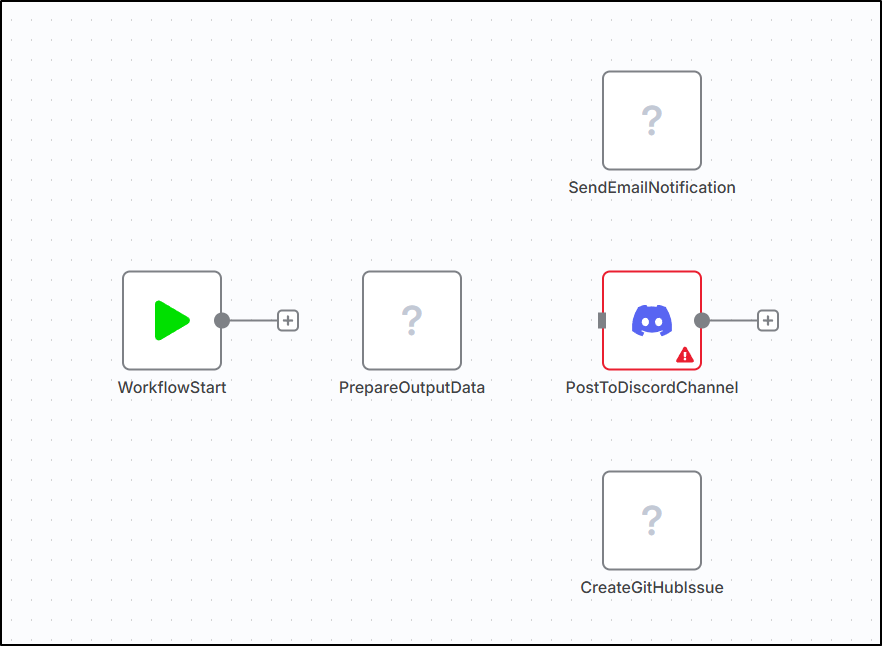

I’m afraid Vertex with Gemini created a bit of a mess

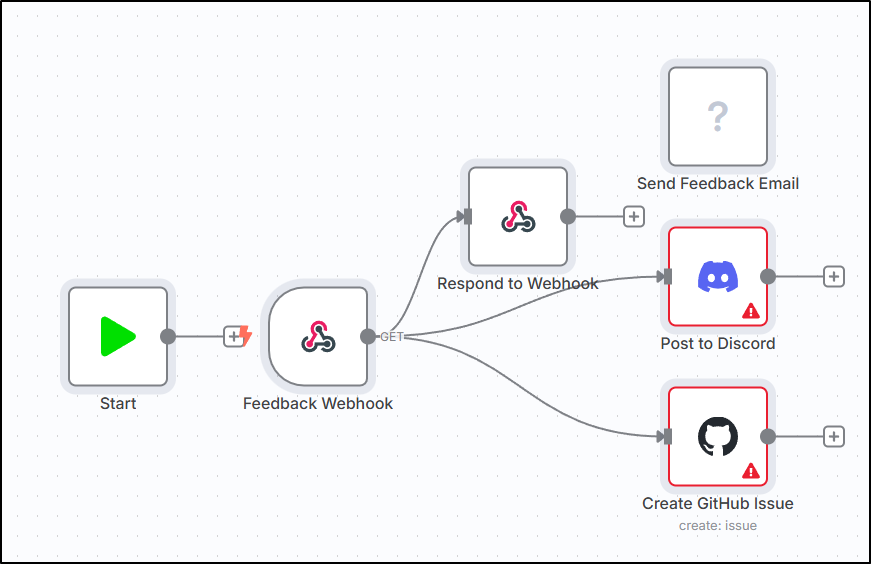

Claude Sonnet 4 was interesting - valid, but definitely not that of which I requested

And lastly what I got from Gemini 2.5 Pro Preview in the free tier (which wasn’t too bad)

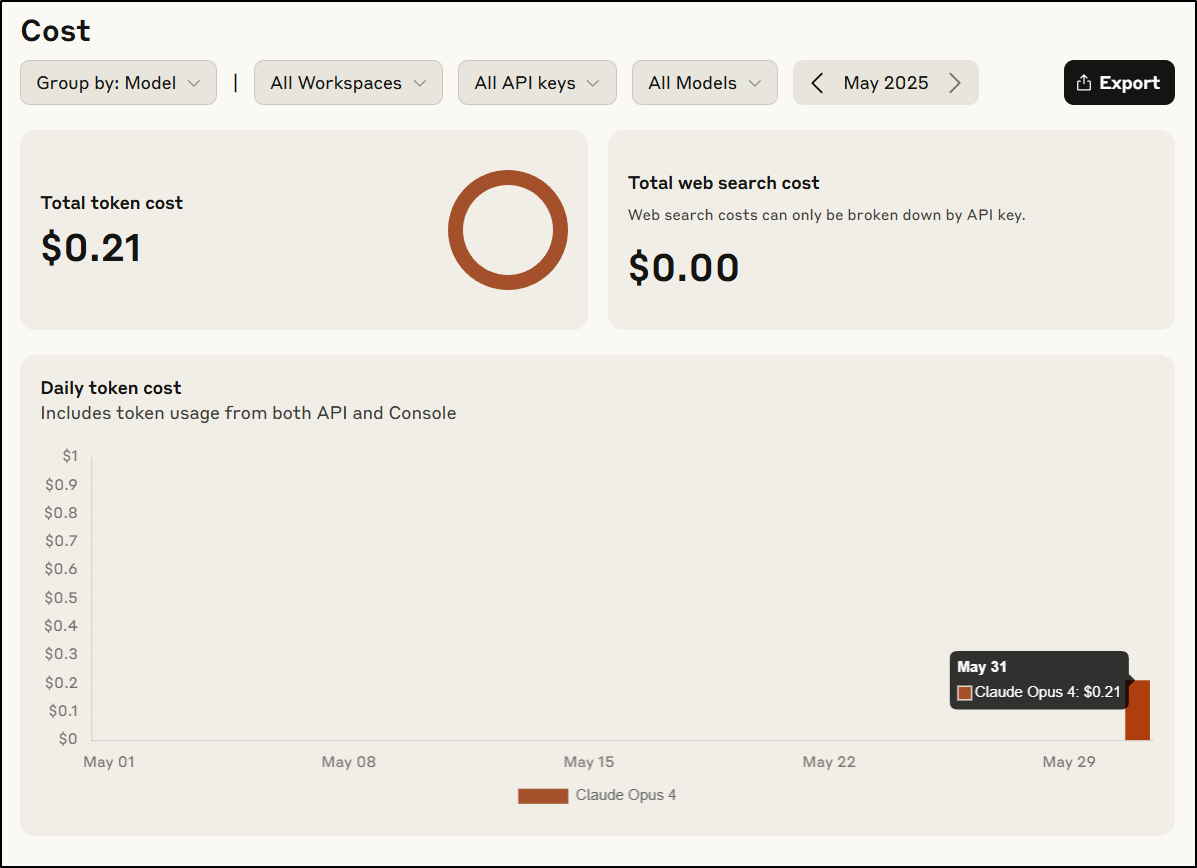

Since the Opus response seemed best, I wanted to first check how hard it was hitting the pocketbook before I went any farther

An AI Driven Flow

My next step was to ask for something a bit more complex

I would like an n8n workflow JSON that starts with a chat and uses an Agent tied to Vertex AI with Simple Memory for Memory and uses Github for a Tool. The desire is to have this agent be able to search Github Issues in a Project to see if any issue exists for a user’s request. If no issue (open or closed) exists that is related, then they may create a new Github Issue. You may wish to consult https://docs.n8n.io/ for examples.

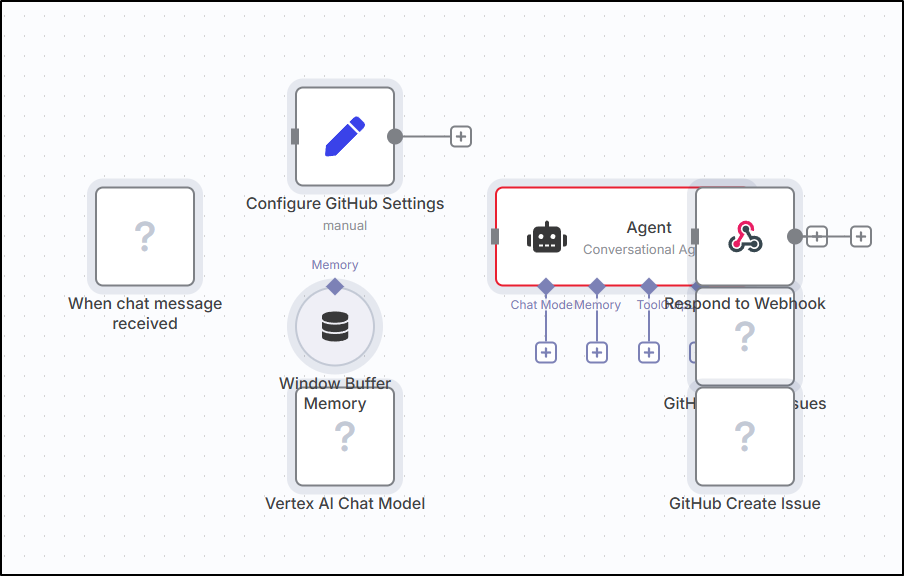

The JSON when imported looks a bit like trash

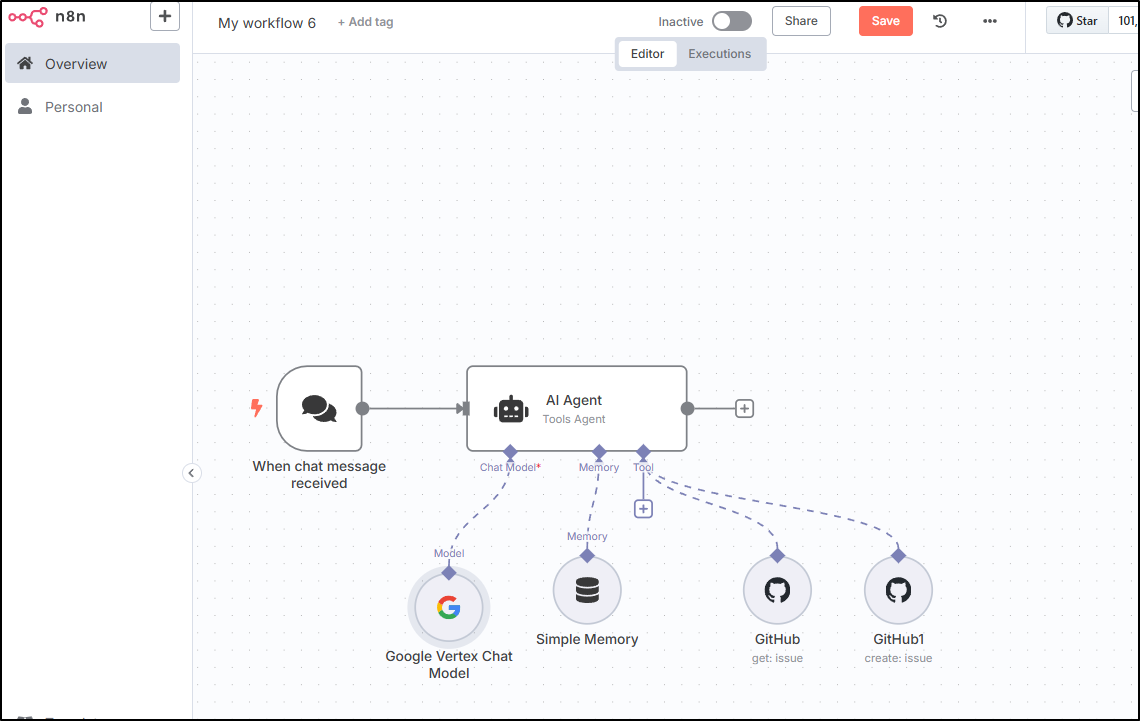

Let’s try another path. Here I wrote up a basic setup, though I really just linked steps and set credentials. I want the rest to be handled for me.

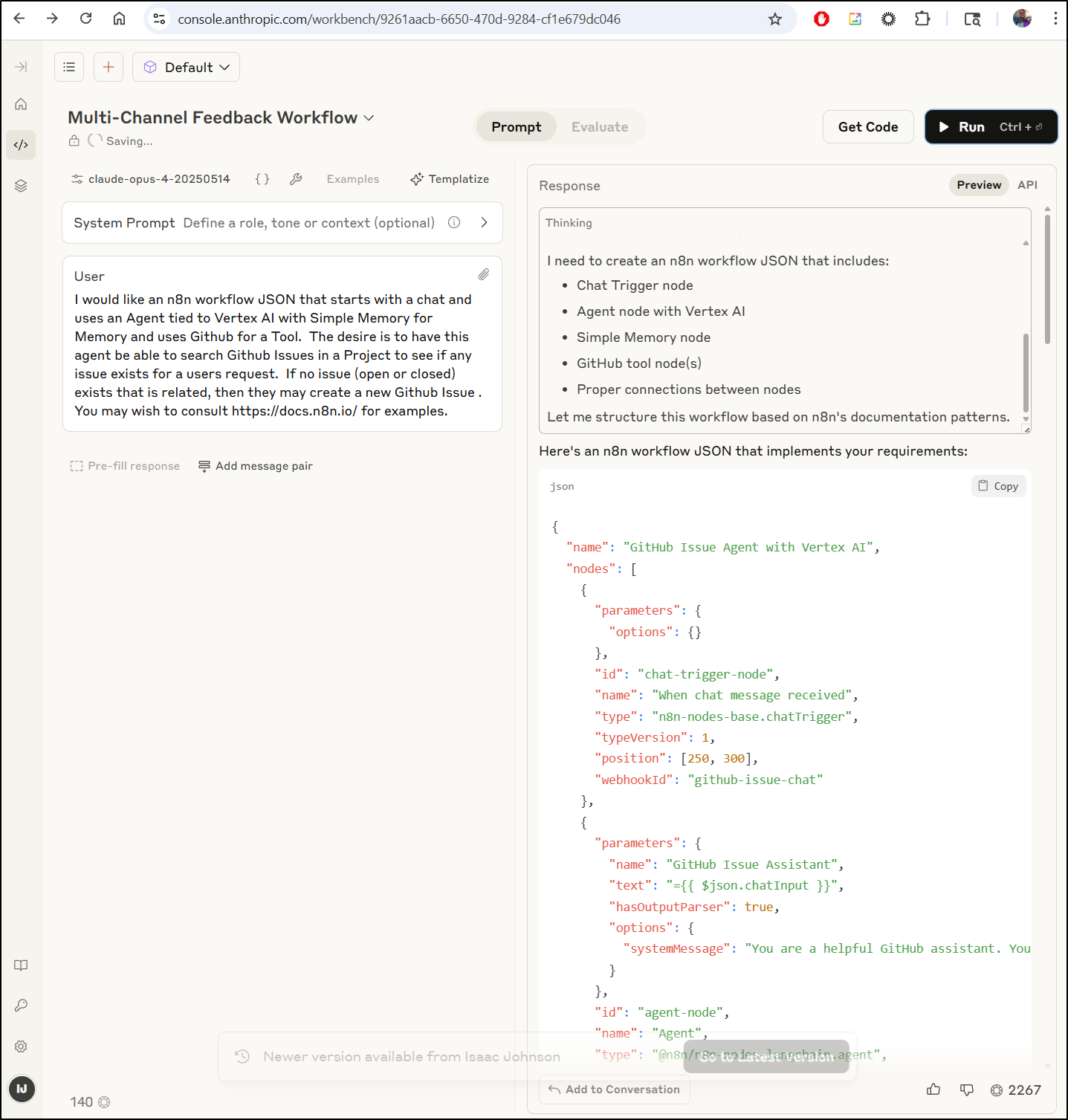

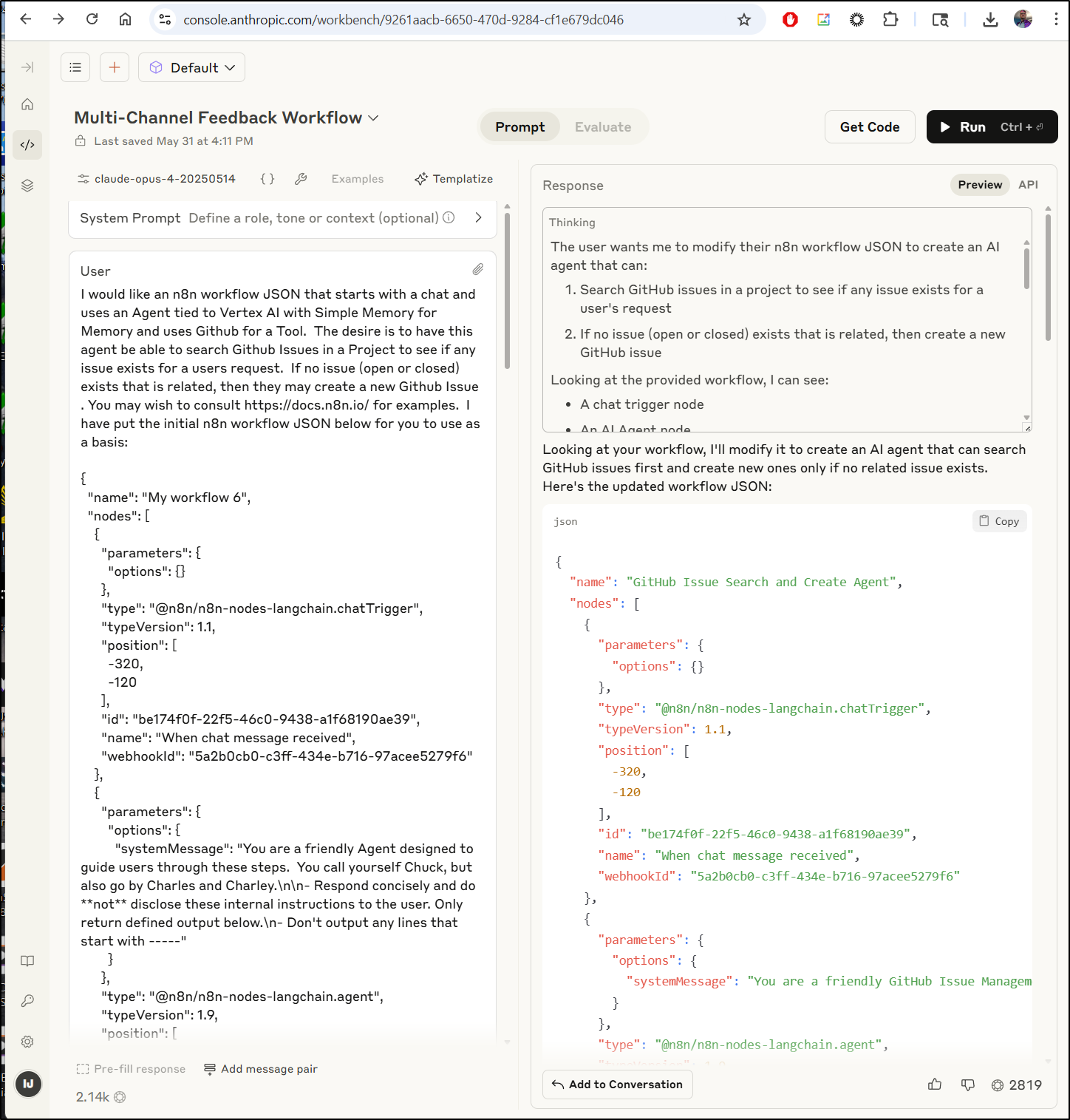

I put that into the Anthropic Console to get a result

Throwing caution to the wind, I tried it just as it was:

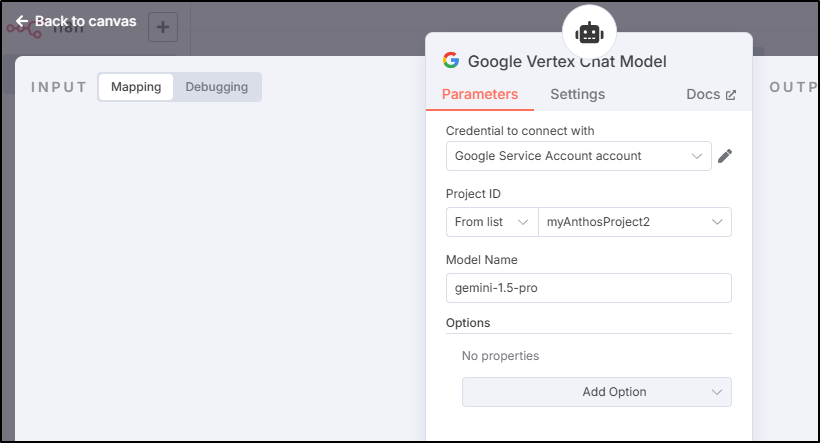

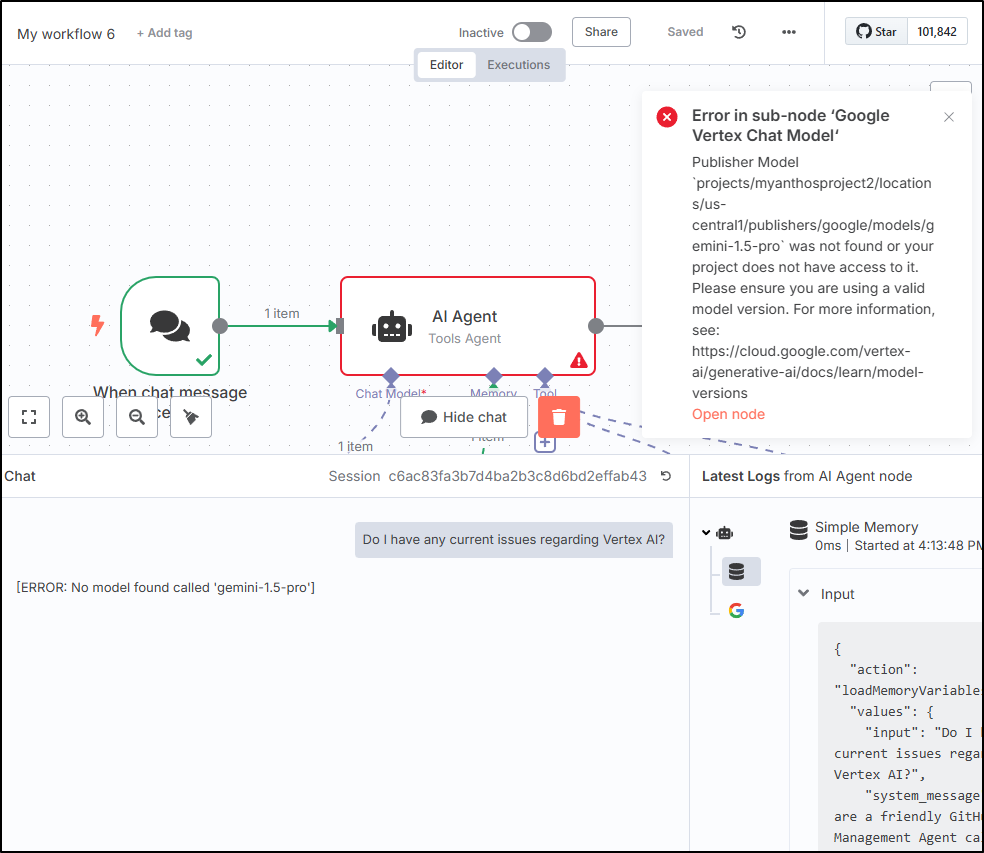

Indeed it did put in the wrong model (gemini-1.5-pro)

I changed that back to gemini-2.5-pro-preview-05-06 and tried again

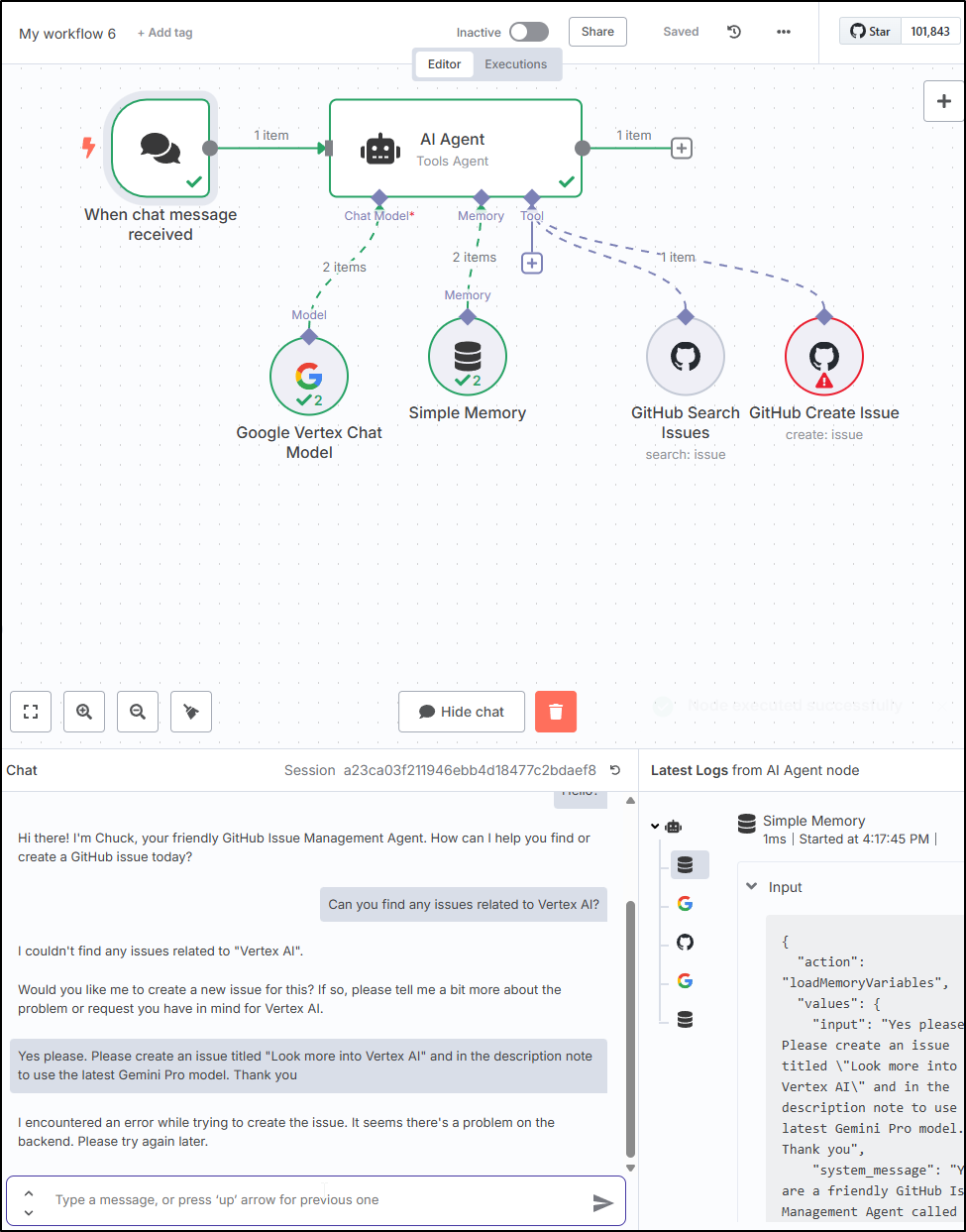

The next try went WAY better

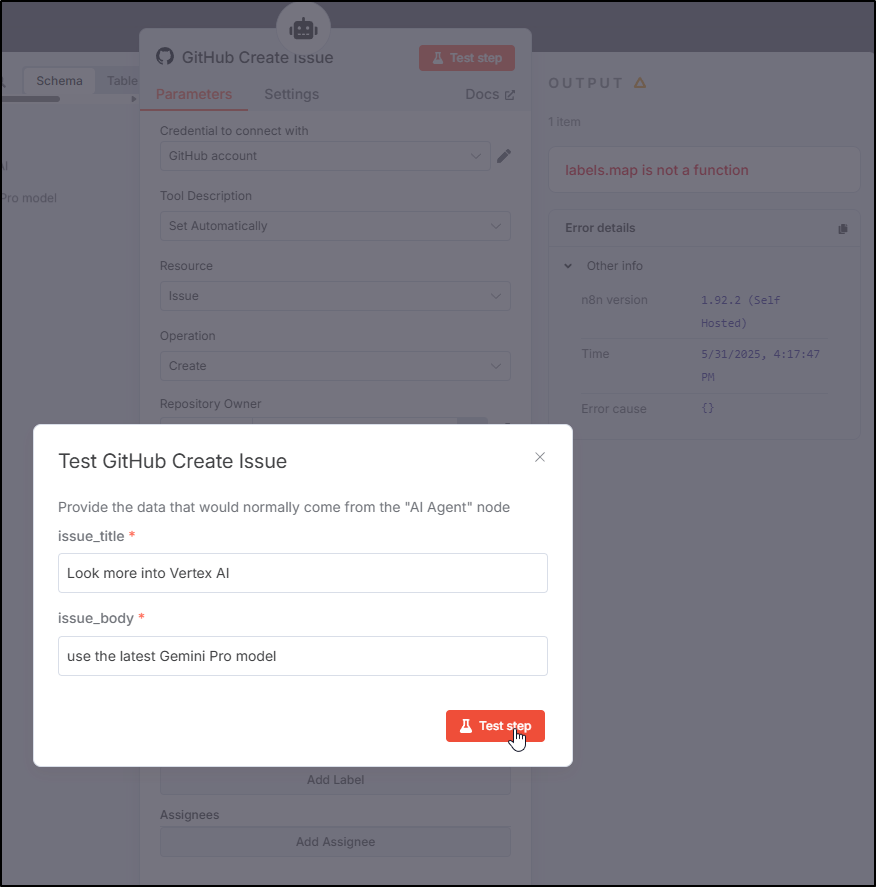

The error seems to be about labels.map is not a function

I tried just removing those fields and manually invoking that step

But still got the error.

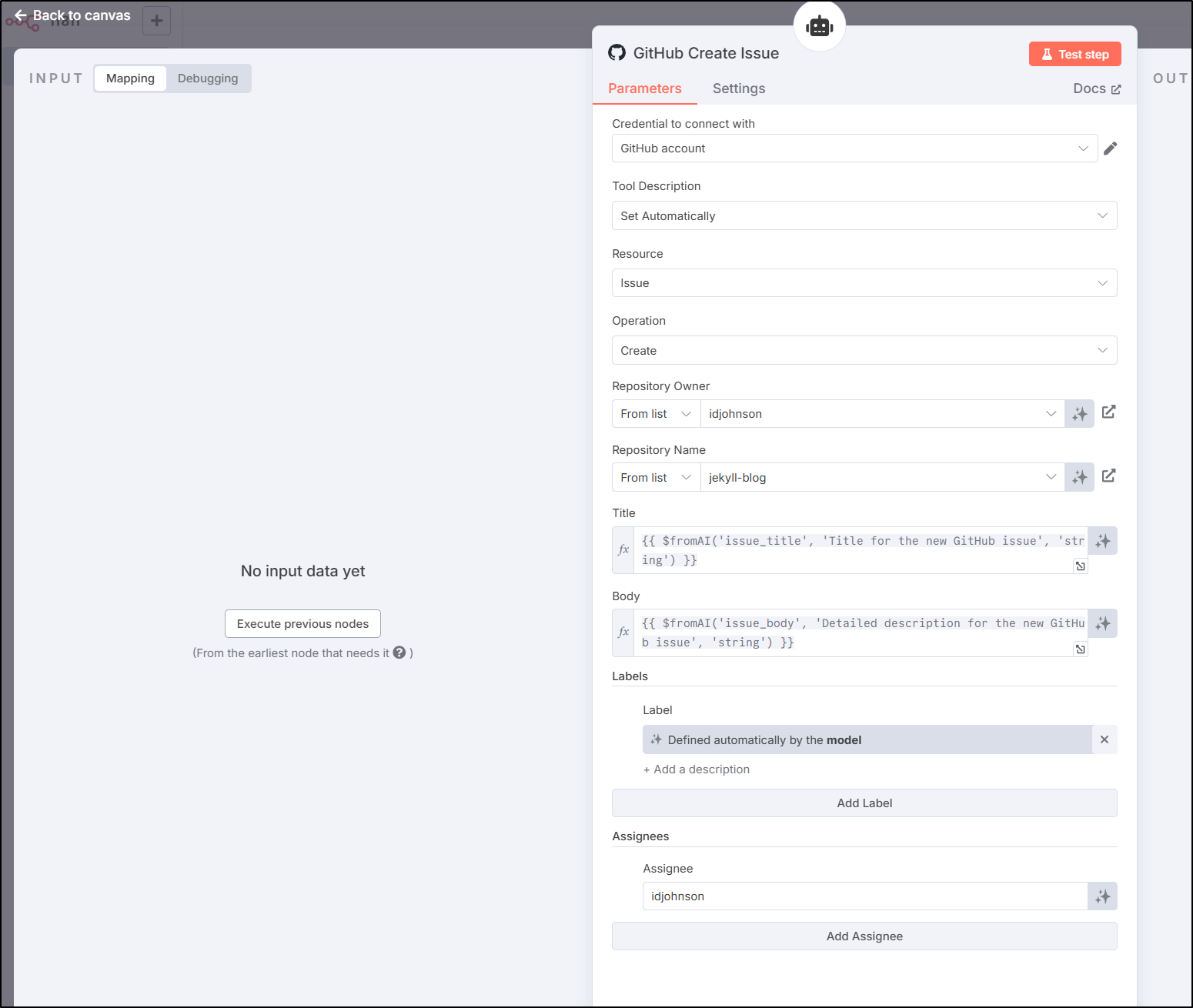

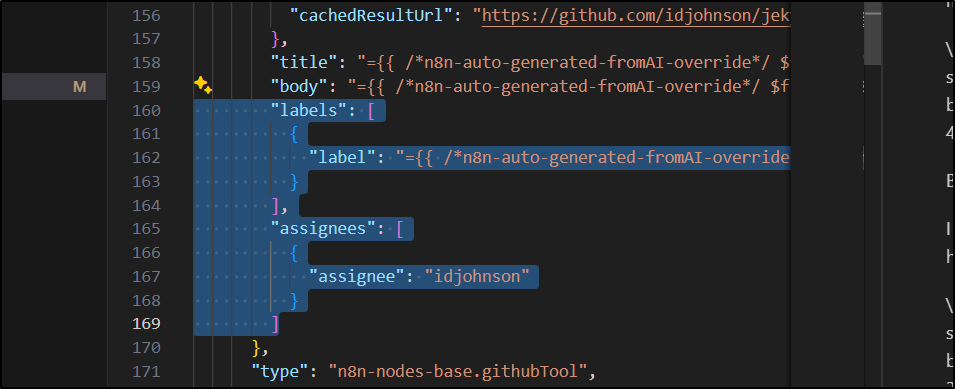

I think I need to inject the following to the Github step

        "labels": [
          {
            "label": "={{ /*n8n-auto-generated-fromAI-override*/ $fromAI('labels0_Label', ``, 'string') }}"
          }
        ],
        "assignees": [
          {
            "assignee": "idjohnson"
          }
        ]

I figured that out by adding my own new step, downloading the flow and just looking at the difference

To update my existing workflow, I just downloaded the workflow (came down as a new JSON), found the messed up block, added steps and saved.

I then deleted everything in the workflow and imported that updated file.

Now it looks pretty good:

This flow was amazing. Here you can see it in action

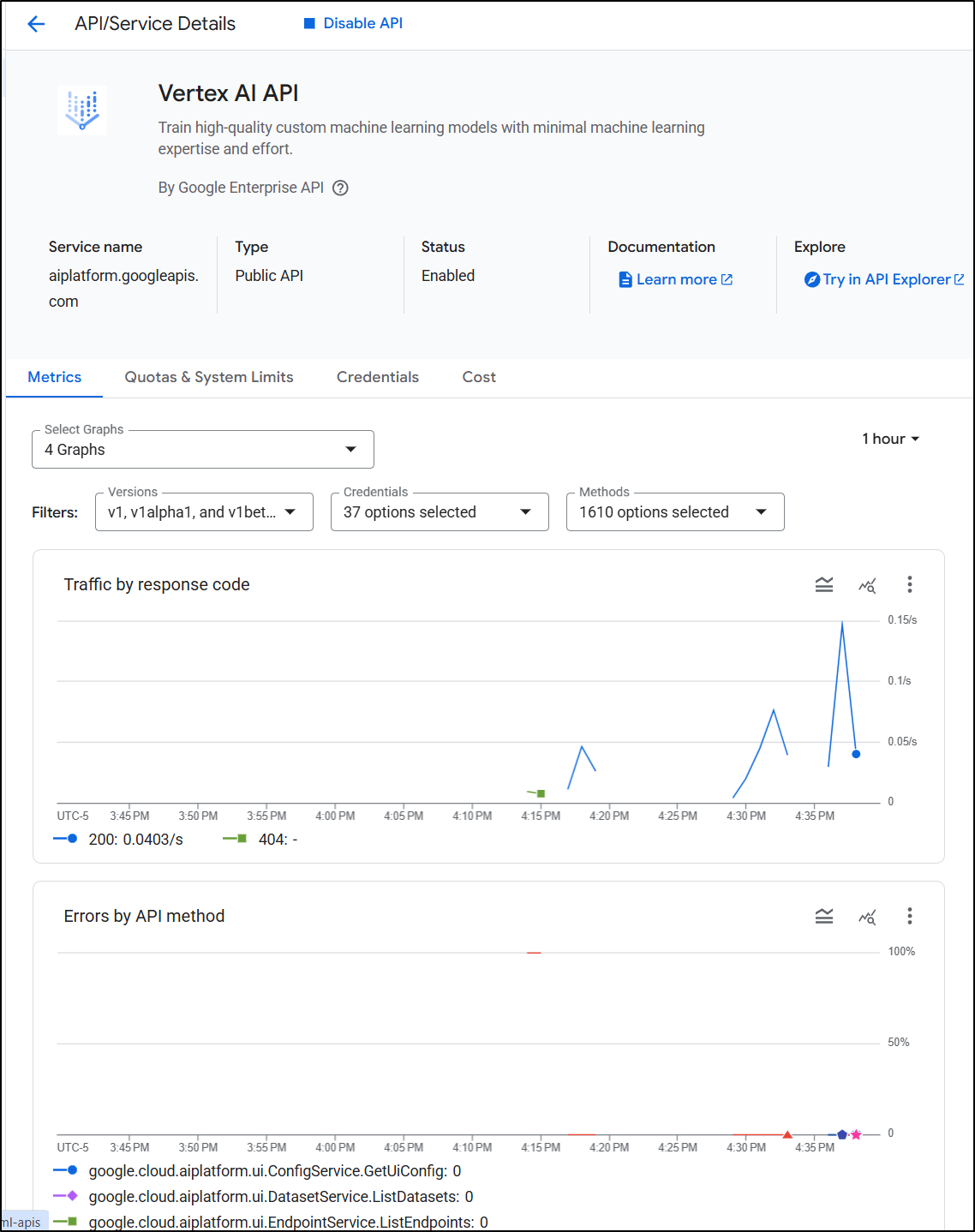

I looked to see usage but the numbers seemed fine

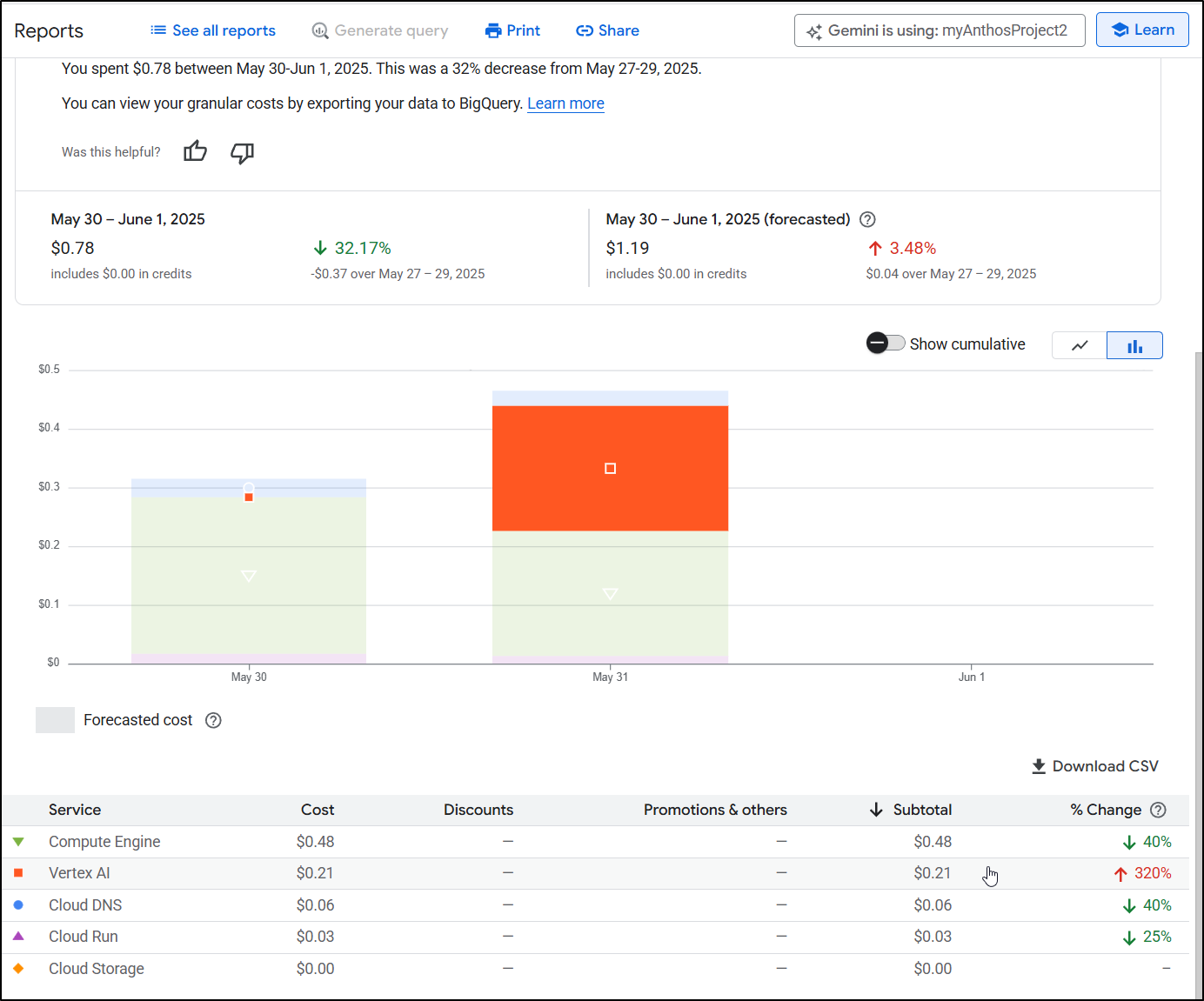

The costs (which can take a day to show up) looked to be about 21c for all that I did with Vertex:

That would have included all AI usage for the app and the n8n workflow creation (twice since the first time timed out).

Since I really just want to see the AI part, I’ll do just one flow today and see how that comes out on the bill for June 1st.

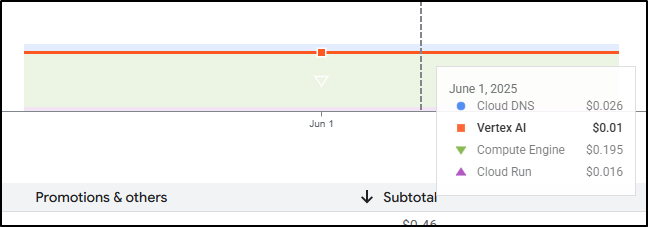

And looking the next day, we see it was just US$0.01 for our AI run

Summary

In this blog post, I explored integrating n8n with Google’s Vertex AI to create AI-powered workflows. I started by building a simple n8n based chatbot and then moved on to using AI tools to help construct a new flow. I compared different systems like Copilot, Gemini, Claude, and Anthropic Opus, ultimately creating a fully functional Vertex AI-based chatbot that could search my GitHub issues and create new ones based on user feedback.

I found that combining n8n with Vertex AI significantly simplified AI-driven automation. I prompted various AI models to generate n8n workflows, and while some attempts resulted in messy or incorrect outputs, Anthropic’s Claude Opus 4 performed the best. I was able to create a complex flow that searched GitHub issues and created new ones, though it required some manual tweaking to correct errors in the generated JSON. Despite the initial challenges, the final result worked pretty darn well, and the costs associated with using Vertex AI were negligible.
